Stainless Steel Corrugated Metal Hose Assembly

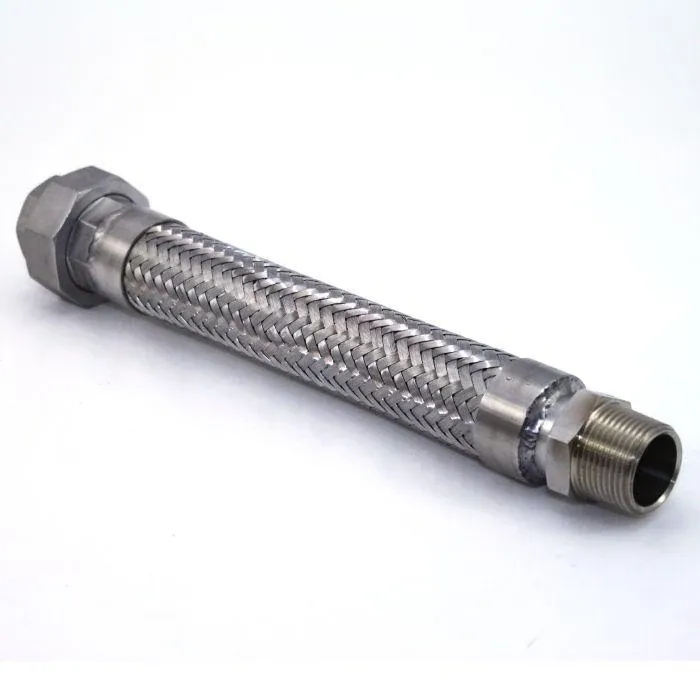

316L stainless steel annular corrugated metal hose assembly with 304/316 stainless steel braid for flexible industrial connections. Available with configurable end connections and custom assembly lengths to suit different piping and equipment interfaces.
Specifications
- Product Type
- Corrugated Metal Hose Assembly
- Core Material
- 316L Stainless Steel
- Core Construction
- Annular Corrugated
- Outer Braid
- 304 / 316 Stainless Steel
- Maximum Working Pressure
- Up to 2500 psi, depending on size and configuration
- Temperature Range
- -200°C to +400°C
- End Connections
- Threaded, Union, JIC / SAE, Tube / Weld Ends and Custom Connections
- Assembly Configuration
- Custom Lengths and End-Connection Combinations Available
Flexible Metal Hose Assemblies for Industrial Connections
Stainless Steel Corrugated Metal Hose Assemblies combine an annular corrugated 316L stainless steel core with an external stainless steel braid to provide a flexible metallic connection between piping and equipment.
The corrugated construction allows the hose to accommodate vibration, movement and thermal movement where a rigid connection may not be suitable, while the external braid reinforces the assembly for pressure service.
Annular Corrugated 316L Stainless Steel Core
The fluid path is formed by a 316L stainless steel annular corrugated core. Its corrugated construction provides the flexibility required for equipment connections and piping systems subject to movement or vibration.
Unlike PTFE-core braided hose, this construction provides an all-metal flexible fluid path.
Stainless Steel Braided Reinforcement
An external 304 or 316 stainless steel braid surrounds the corrugated core. The braid provides mechanical reinforcement and helps support pressure containment while allowing the hose assembly to remain flexible.
Working pressure depends on hose size and assembly configuration and should therefore be selected according to the actual operating conditions.
Configurable End Connections
Metal hose assemblies can be supplied with different end connections to match the mating piping or equipment interface.
Different connection styles may be specified at each end of the assembly, allowing the hose to connect between different equipment and piping interfaces without defining the hose solely by one connection type.
End-connection requirements should be specified together with hose size, assembly length and operating conditions when requesting a quotation.
Built to the Required Assembly Length
A flexible metal hose is selected as a complete assembly rather than by hose diameter alone. Hose length, end connections, operating pressure, temperature, movement and installation conditions all affect the required configuration.
For custom assemblies, provide the required overall length and connection details so the complete hose assembly can be reviewed for the application.
Typical Applications
Stainless steel corrugated metal hose assemblies are suitable for flexible connections in industrial equipment and piping systems, including:
- Pumps and compressors
- Process and utility piping
- Equipment connections
- Vibration isolation
- Thermal movement accommodation
- Flexible connections between rigid piping sections
Specify Your Hose Assembly
For quotation and configuration review, provide the required hose size, overall length, end connections, operating pressure, operating temperature and process medium.
