Smooth Bore Convoluted PTFE Braided Hose Assembly

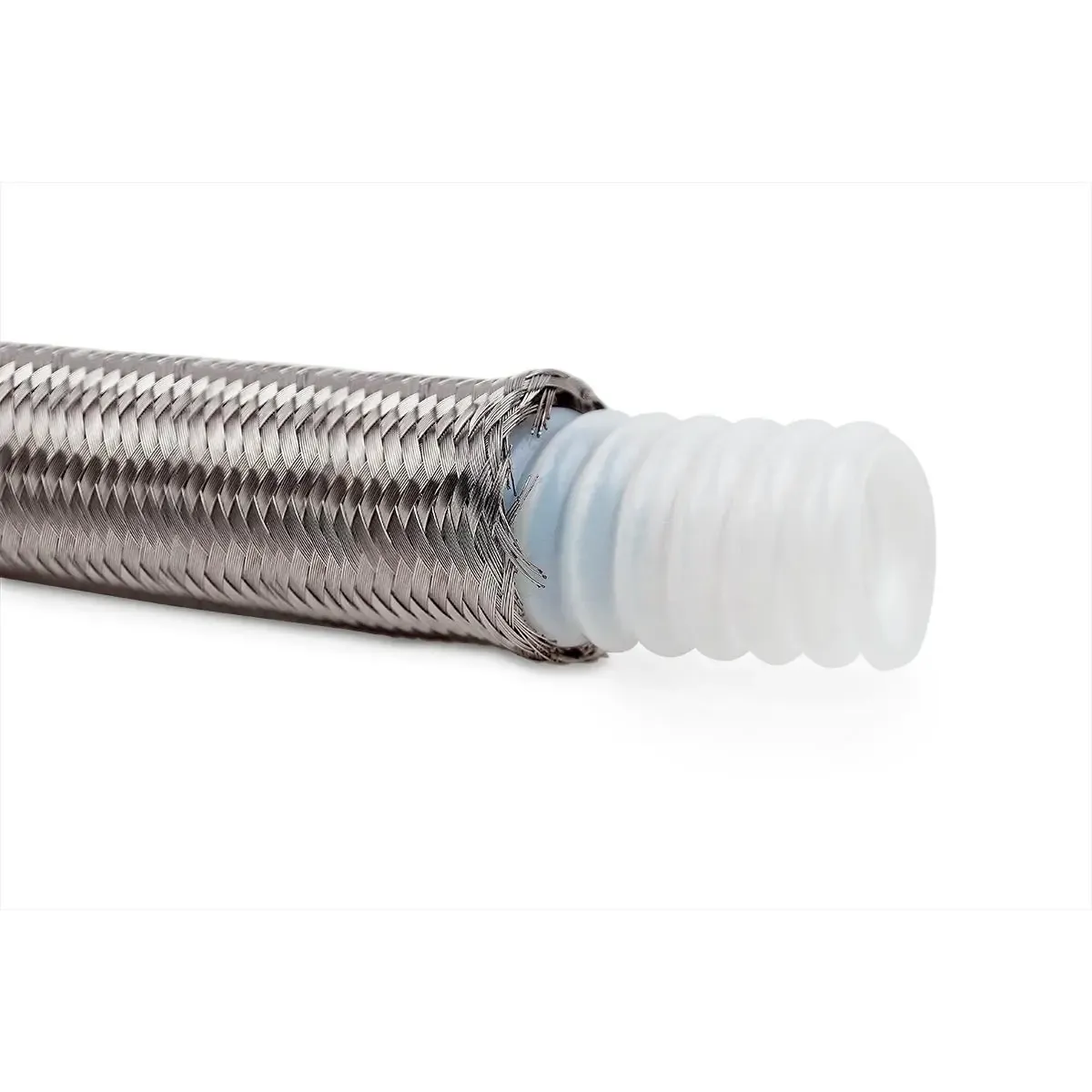

Smooth bore PTFE hose assembly with a convoluted outer liner profile and 304/316 stainless steel braid for flexible fluid connections. The PTFE liner provides a smooth internal flow path, while the external convoluted profile improves flexibility for compact equipment and piping installations.
Specifications
- Product Type
- PTFE Braided Hose Assembly
- Inner Tube Material
- PTFE
- Inner Tube Construction
- Smooth Inside, Convoluted Outside
- Outer Braid
- 304 / 316 Stainless Steel
- Maximum Working Pressure
- Up to 3000 psi, depending on size and configuration
- End Connections
- Multiple End Connection Options Available
- Assembly Configuration
- Custom Lengths and End-Connection Combinations Available
Flexible PTFE Hose Assemblies with a Smooth Internal Bore
Smooth Bore Convoluted PTFE Braided Hose Assemblies combine a PTFE inner liner with stainless steel braided reinforcement for flexible fluid connections in industrial equipment and piping systems.
The PTFE liner features a smooth internal flow path with a convoluted outer profile. This construction combines the flow characteristics of a smooth bore with increased flexibility for installations where routing space, movement or vibration make a rigid connection impractical.
Smooth Inside, Convoluted Outside PTFE Liner
The inner tube is manufactured from PTFE with a smooth internal bore and a convoluted external profile.
The smooth internal surface provides an unobstructed fluid path, while the external convolutions allow the hose to bend more easily than a conventional rigid connection.
This construction is particularly useful where flexible routing is required within compact equipment or piping layouts.
Stainless Steel Braided Reinforcement
A 304 or 316 stainless steel braid surrounds the PTFE liner.
The external braid provides mechanical reinforcement and supports the hose assembly during pressure service while maintaining the flexibility required for equipment connections.
Working pressure depends on hose size and the complete assembly configuration and should therefore be selected according to the actual operating conditions.
Configurable Hose Assemblies
The hose can be supplied as a completed assembly with end connections selected to suit the mating equipment or piping interface.
Different connection requirements can be accommodated according to the required assembly configuration. Hose size, overall length and end-connection details should be specified when requesting a quotation.
Built for the Required Installation
A PTFE braided hose assembly should be selected as a complete system rather than by hose diameter alone.
Hose size, assembly length, end connections, operating pressure, temperature, process medium and installation conditions all affect the final configuration.
Providing these operating details allows the hose assembly to be reviewed against the actual application requirements.
Typical Applications
Smooth bore convoluted PTFE braided hose assemblies are suitable for flexible fluid connections in industrial equipment and piping systems, including:
- Cooling and fluid circulation systems
- Process equipment connections
- Compact equipment piping
- Pump and manifold connections
- Flexible connections between rigid piping sections
- Applications requiring a PTFE fluid-contact surface
Specify Your Hose Assembly
For quotation and configuration review, provide the required hose size, overall length, end connections, operating pressure, operating temperature and process medium.
