Hose & Flexible Connections

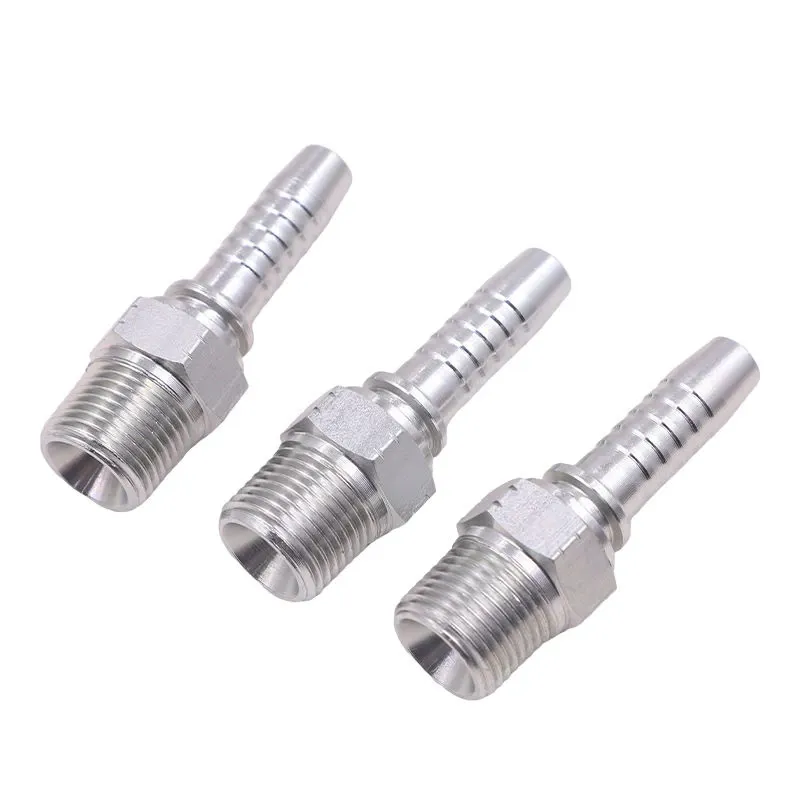

Male NPT Straight Hydraulic Hose Fitting
Straight male NPT hydraulic hose fitting with a hose stem for hydraulic hose assemblies. Available in stainless steel and carbon steel for connection to compatible female NPT ports in hydraulic and industrial fluid systems.
Specifications
- Product Type
- Hydraulic Hose Fitting
- Series / Reference
- 15611
- Materials
- Stainless Steel, Carbon Steel
- Connection Type
- Male NPT
- Configuration
- Straight
- Hose End
- Hose Stem
Male NPT Connection for Hydraulic Hose Assemblies
The Male NPT Straight Hydraulic Hose Fitting provides a direct connection between a hydraulic hose assembly and a compatible female NPT threaded port.
Its straight configuration combines a male NPT connection, hex body and hose stem in a compact hose-end fitting for hydraulic and industrial fluid systems.
Key Features
- Male NPT threaded connection
- Straight hydraulic hose fitting configuration
- Hose stem for hydraulic hose assemblies
- Available in stainless steel and carbon steel
- Hex body for installation
- Designed for compatible female NPT threaded connections
Material Options
Stainless steel and carbon steel versions are available for different hydraulic system and operating requirements.
Stainless steel is commonly selected where corrosion resistance is an important consideration, while carbon steel is widely used in general hydraulic applications. Material selection should consider the operating environment, fluid compatibility and system requirements.
Male NPT Threaded Connection
The male NPT end is designed to connect with a compatible female NPT threaded port in hydraulic equipment, manifolds and other fluid-system components.
Because NPT is a tapered pipe thread, the correct mating thread, thread size and installation method should be confirmed before assembly. NPT should not be interchanged with BSP or other thread systems solely on the basis of nominal size.
Straight Hose-End Configuration
The straight configuration provides an in-line transition from the hydraulic hose to the threaded connection without introducing an elbow into the hose-end fitting.
The opposite end incorporates a hose stem for integration into a compatible hydraulic hose assembly.
Hydraulic Hose Fitting vs. Threaded Adapter
This product is a hydraulic hose-end fitting rather than a conventional NPT adapter.
The hose stem is intended for integration into a hose assembly, while the male NPT end provides the connection to the corresponding threaded equipment or system port. This distinction is important when selecting components for new hose assemblies or replacement requirements.
Typical Applications
Male NPT hydraulic hose fittings are commonly used in:
- Hydraulic machinery and equipment
- Hydraulic power units
- Mobile hydraulic systems
- Industrial fluid power systems
- Machinery and equipment connections
- Hydraulic hose assemblies requiring male NPT connections
Selecting the Correct Fitting
Selection should consider both sides of the hose assembly.
Confirm the NPT thread size, hose size and specification, material and fitting configuration before ordering. For replacement requirements, an existing fitting reference, drawing or sample can help verify the required connection.
Request a Quote
Need a male NPT hydraulic hose fitting for a new hose assembly or replacement requirement?
Send us your NPT thread size, hose specification, material, quantity, drawing or existing fitting reference. Our team can help confirm the appropriate configuration for your application.
