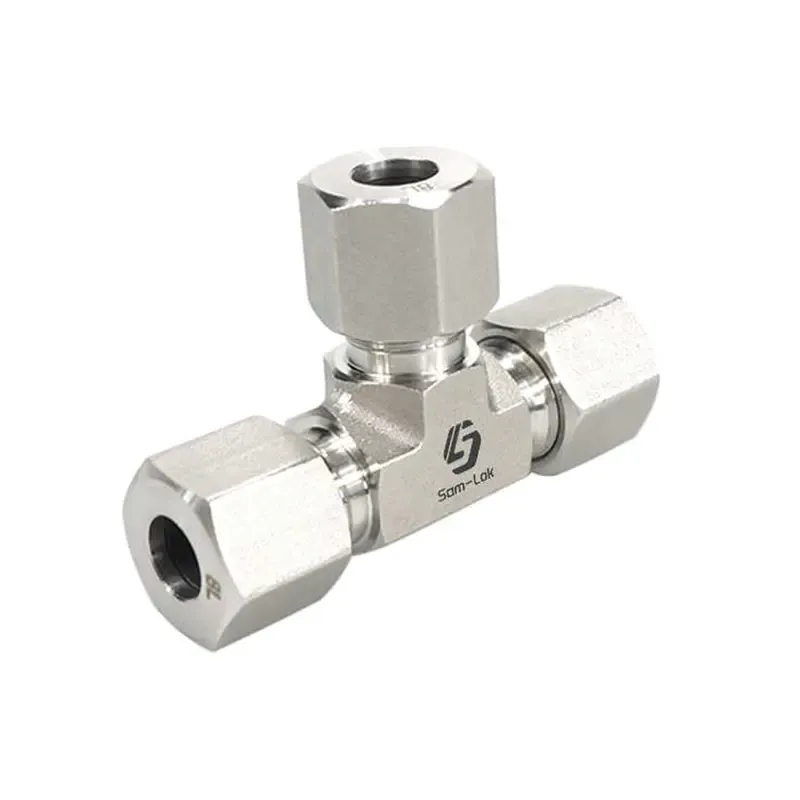

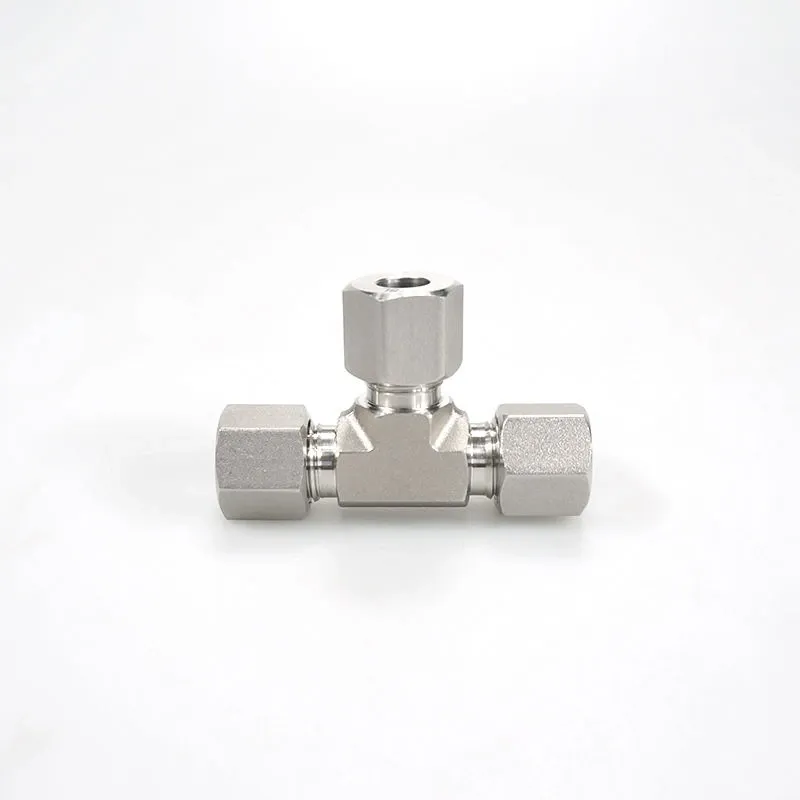

Single Ferrule Hydraulic Union Tee
Equal hydraulic union tee for connecting three metric tubes of the same outside diameter using 24° cutting-ring connections. Available in LL, L and S series for hydraulic and industrial fluid systems.
Specifications
- Series
- T Series
- Connection
- Three Metric Tube Ends
- Connection System
- 24° Cutting Ring
- Tube O.D.
- 4–42 mm, depending on series
- Tube Series
- LL / L / S
- Configuration
- Equal Union Tee
- Standard Basis
- ISO 8434-1 / DIN 2353
- Standard Material
- 316 Stainless Steel
Overview
The T Series Single Ferrule Hydraulic Union Tee connects three metric tubes of the same outside diameter in an equal tee configuration.
All three ends use the 24° cutting-ring connection system, providing a tube-to-tube branching connection without a pipe-thread port.
LL, L and S series are available for different metric tube sizes and hydraulic system requirements.
Key Features
- Equal three-way tube connection
- Three 24° cutting-ring tube ends
- Connects three metric tubes of the same outside diameter
- LL, L and S series options
- Metric tube O.D. range from 4 to 42 mm, depending on series
- No pipe-thread connection required
- 316 stainless steel as the standard material
- Suitable for hydraulic and industrial fluid systems
- Based on the ISO 8434-1 / DIN 2353 24° tube-fitting system
Engineering Specifications
Item | Specification |
|---|---|
Product Type | Single Ferrule Hydraulic Union Tee |
Product Series | T Series |
Connection | Three Metric Tube Ends |
Connection System | 24° Cutting Ring |
Configuration | Equal Union Tee |
Tube Series | LL / L / S |
Tube O.D. | 4–42 mm, depending on series |
Standard Basis | ISO 8434-1 / DIN 2353 |
Standard Material | 316 Stainless Steel |
Working Pressure | Series- and size-dependent |
Dimensions | Series- and size-specific |
Tube Series & Size Options
T Series Hydraulic Union Tees are available in LL (Extra-Light), L (Light) and S (Heavy) configurations.
Series | Tube O.D. |
|---|---|
LL — Extra-Light | 4, 6, 8, 10, 12 mm |
L — Light | 6, 8, 10, 12, 15, 18, 22, 28, 35, 42 mm |
S — Heavy | 6, 8, 10, 12, 14, 16, 20, 25, 30, 38 mm |
Select the required tube series and tube O.D. according to the hydraulic system requirements.
Working Pressure
Working pressure varies according to the selected tube series and tube O.D.
Series / Tube O.D. | Working Pressure |
|---|---|
LL: 4–12 mm | 100 bar / 1450 psi |
L: 6–18 mm | 315 bar / 4560 psi |
L: 22–42 mm | 160 bar / 2320 psi |
S: 6–14 mm | 630 bar / 9130 psi |
S: 16–30 mm | 400 bar / 5800 psi |
S: 38 mm | 315 bar / 4560 psi |
Pressure ratings should be considered together with the tube specification, tube material, wall thickness, operating temperature and complete assembled system.
For pressure- or temperature-sensitive applications, provide the tube specification and operating conditions for review.
Size & Configuration Information
Each T Series Hydraulic Union Tee connects three metric tubes of the same outside diameter in an equal tee configuration.
Dimensions and ordering numbers vary by tube O.D. and LL, L or S series. Configuration-specific dimensional information can be provided for quotation and technical review.
Materials
316 stainless steel is the standard material for this series.
Material selection should take into account the fluid medium, operating environment, temperature and corrosion requirements.
Specify the required material together with the tube O.D., series and quantity when requesting a quotation.
Installation & System Considerations
Correct assembly is important to the performance of a 24° hydraulic tube connection.
Tube preparation and cutting-ring assembly should follow the applicable assembly procedure for the selected tube size and series. All three tube connections should be correctly aligned to avoid unintended loading on the fitting or tubing during installation.
Tube dimensions, wall thickness and material should be compatible with the selected fitting configuration.
For critical hydraulic applications, provide the complete tube specification and operating conditions for review.
Typical Applications
Single Ferrule Hydraulic Union Tees are commonly used for:
- Industrial machinery
- Mobile and stationary hydraulic equipment
- Machine tool hydraulic systems
- Pumps and hydraulic control equipment
- Process and utility equipment
- Hydraulic distribution and branch lines
- Hydraulic tube installations requiring a three-way connection
Selection & Ordering Information
To specify the required Hydraulic Union Tee, provide:
- Tube O.D.
- Tube Series — LL, L or S
- Material
- Tube specification and wall thickness
- Operating pressure and temperature
- Quantity
Existing part numbers, drawings, BOMs or product references can also be provided for product matching and quotation review.
