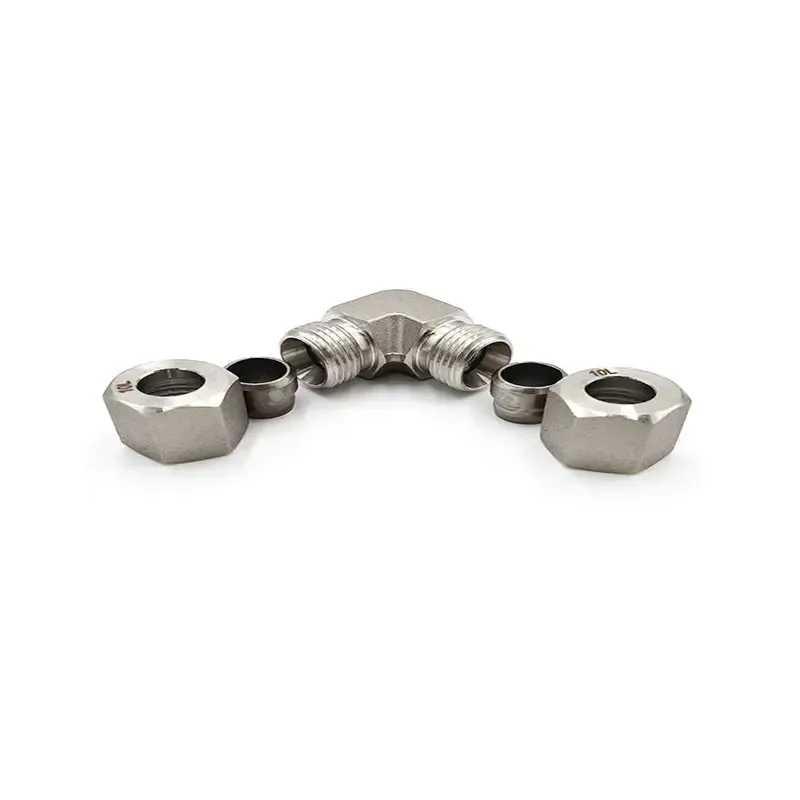

DIN 2353 Single Ferrule Hydraulic Elbow Union Fitting

Create compact, robust 90° turns in your high-pressure hydraulic systems. The Stark Single Ferrule Hydraulic Elbow is manufactured in compliance with DIN 2353 / ISO 8434-1 standards, providing a proven, leak-free solution for directional changes. Its one-piece forged 316/316L stainless steel body and hardened single ferrule design offer maximum resistance to vibration and hydraulic shock, making it the ideal choice for tight layouts on mobile equipment, industrial machinery, and offshore systems.

[Request a Quote in 24h] [Apply for Free Samples]

✓ DIN 2353 / ISO 8434-1 Compliant| ✓ Space-Saving 90° Design| ✓ Extreme Vibration Resistance

🔧 Configure Your Hydraulic Elbow in Seconds

Our DIN 2353 compliant hydraulic elbows are available in three pressure series to match your specific system requirements. Find your part number by selecting the series and tube O.D.

1. Select Your Pressure Series:

○ LL (Very Light Duty - 100 bar)
○ L (Light Duty - up to 315 bar)
○ S (Heavy Duty - up to 630 bar)

2. Select Your Metric Tube O.D. (mm)

🔥 Most Common Configurations (In Stock - Same Day Shipping)

L Series (Light Duty)	S Series (Heavy Duty)
W08L(8mm Tube, 315 bar)	W12S(12mm Tube, 630 bar)
W12L(12mm Tube, 315 bar)	W16S(16mm Tube, 400 bar)
W18L(18mm Tube, 315 bar)	W20S(20mm Tube, 400 bar)
[Add to Quote]	[Add to Quote]

Part Number Format: [Material]-W[Tube O.D.][Series] (e.g., INC625-W08L)

(W = Union Elbow)

🛠 The Engineering Advantage

Maximum Strength with One-Piece Forging: Unlike multi-piece or welded elbows, our monolithic forged body provides a continuous grain structure through the bend. This eliminates weak points and offers the highest possible resistance to the pressure spikes and mechanical stresses common in hydraulic systems.

Optimized for Compact Layouts: The 90° design allows for immediate directional changes, enabling cleaner, tighter tube routing in crowded spaces like hydraulic power units and mobile equipment engine bays.

Proven, Standardized Design: By adhering to the globally recognized DIN 2353 / ISO 8434-1standard, our elbows guarantee dimensional interchangeability and performance you can trust for both new system builds and MRO replacements.

Molybdenum Disulfide Coated Nuts: To combat galling in high-torque hydraulic applications, all nuts are coated with Molybdenum Disulfide (Moly), a high-pressure solid lubricant that ensures smooth assembly and allows for reliable reassembly.

📈 Technical Specifications

Feature	Stark Standard Specification
Standard	DIN 2353 / ISO 8434-1
Body Material	Forged 316/316L Stainless Steel
Ferrule Material	Case-Hardened 316 Stainless Steel
Nut Coating	Molybdenum Disulfide (Moly) Coated
Pressure Series	LL (Very Light - 100 bar), L (Light - up to 315 bar), S (Heavy - up to 630 bar)
Testing	100% Hydrostatic Tested to 1.5x Working Pressure
Compliance	MTR to EN 10204 3.1 & PMI Verified

📌 Targeted Application Support

Hydraulic Power Units (HPUs): Ideal for routing lines from pumps and valves within the HPU frame.

Mobile & Heavy Equipment: Provides robust, vibration-resistant 90° turns for hydraulic lines on excavators, tractors, and mining equipment.

Shipbuilding & Offshore: Creates compact, corrosion-resistant pipe runs in tight engine rooms and on deck machinery.

Industrial Machinery: Connects hydraulic cylinders and motors where space is limited.

❓ Frequently Asked Questions (FAQ)

Q1: Why is a one-piece forged elbow better for hydraulic systems?

A one-piece forged body is significantly stronger than an elbow made by welding two pieces together. The continuous grain structure of a forging provides superior resistance to the high-pressure pulses (hydraulic shock) and constant vibration that can cause welds to fail over time.

Q2: What is the difference between the L series and S series for elbows?

The "L" (Light) and "S" (Heavy) series correspond to different pressure ratings as defined by the DIN 2353 standard. The S serieshas a more robust, heavy-wall construction for higher pressuresystems (up to 630 bar), while the L seriesis more compact and designed for medium-pressure applications (up to 315 bar).

Q3: Does a 90° elbow affect the flow rate?

Yes, any bend in a system will create some pressure drop. However, our elbows are designed with a smooth, full-flow internal bore to minimize turbulence and keep pressure loss to a minimum, ensuring your system operates efficiently.

Q4: Are your DIN 2353 elbows interchangeable with Parker EO® or Voss®?

Our fittings are manufactured to be dimensionally compliant with the DIN 2353 / ISO 8434-1standard, making them interchangeable with other brands that also adhere to this standard, such as the Parker Ermeto (EO/EO-2) series. While Swagelok also offers some DIN-compliant products, their primary offering is double ferrule, so careful verification is needed. For critical applications, we always recommend using a consistent set of Stark components.

📦 Complete DIN 2353 Size & Pressure Chart

Need a custom material or configuration?[Request Custom Configuration]
