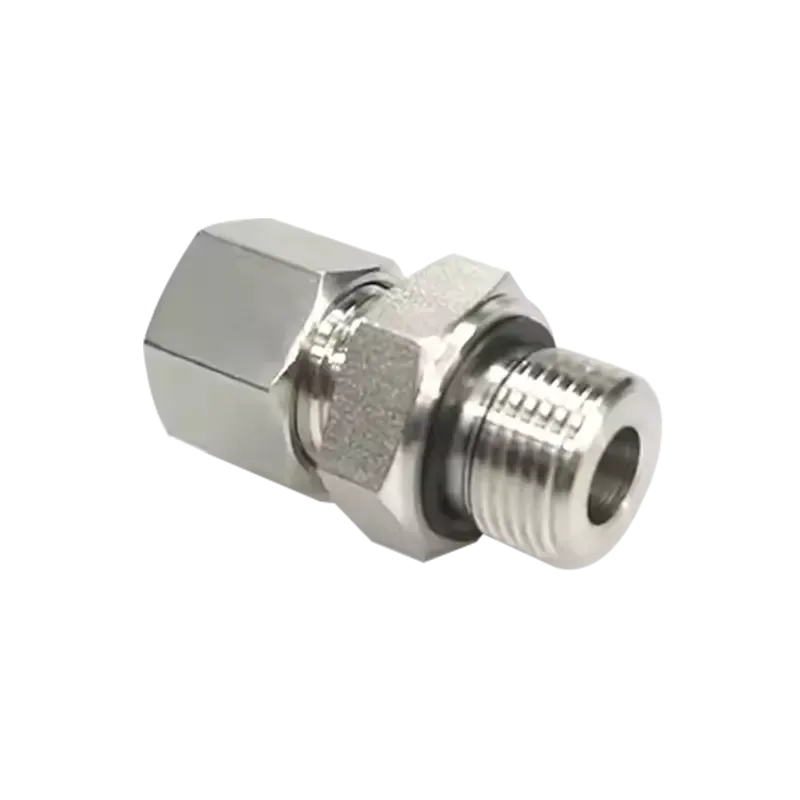

Single Ferrule Hydraulic Male Connector
Straight hydraulic male connector for connecting metric tubing to a female threaded port using a 24° cutting-ring tube connection. Available in LL, L and S series with BSPT, NPT, BSPP and Metric male-thread configurations for hydraulic and industrial fluid systems.
Specifications
- Series
- GE Series
- Connection
- Metric Tube × Male Thread
- Connection System
- 24° Cutting Ring × Male Stud
- Tube O.D.
- 4–42 mm, depending on series and configuration
- Tube Series
- LL / L / S
- Male-Thread Options
- BSPT / NPT / BSPP / Metric
- Sealing Options
- Tapered Thread / ED Seal / O-Ring Seal
- Configuration
- Straight Male Connector
- Standard Basis
- ISO 8434-1 / DIN 2353
- Standard Material
- 316 Stainless Steel
Overview
The GE Series Single Ferrule Hydraulic Male Connector provides a straight connection between metric tubing and a female threaded equipment or component port.
The tube side uses a 24° cutting-ring connection, while the male port side is available with multiple thread and sealing configurations to suit different hydraulic connection requirements.
Available configurations include BSPT and NPT tapered male threads, BSPP male threads with ED sealing, and Metric male threads with ED or O-ring sealing arrangements.
LL, L and S series are available depending on the selected connection configuration and tube size.
Key Features
- Straight metric tube-to-port connection
- 24° cutting-ring tube connection
- LL, L and S series options
- Metric tube O.D. range from 4 to 42 mm, depending on series and configuration
- BSPT, NPT, BSPP and Metric male-thread options
- Multiple sealing configurations for different port requirements
- 316 stainless steel as the standard material
- Suitable for hydraulic and industrial fluid systems
- 24° tube connection architecture based on ISO 8434-1 / DIN 2353
Engineering Specifications
Item | Specification |
|---|---|
Product Type | Single Ferrule Hydraulic Male Connector |
Product Series | GE Series |
Connection | Metric Tube × Male Thread |
Tube Connection | 24° Cutting Ring |
Configuration | Straight Male Connector |
Tube Series | LL / L / S |
Tube O.D. | 4–42 mm, depending on series and configuration |
Male-Thread Options | BSPT / NPT / BSPP / Metric |
Standard Basis | ISO 8434-1 / DIN 2353 |
Standard Material | 316 Stainless Steel |
Working Pressure | Series-, size- and configuration-dependent |
Dimensions | Series- and configuration-specific |
Tube Series & Size Options
GE Series Hydraulic Male Connectors are available in LL (Extra-Light), L (Light) and S (Heavy) configurations.
Series | Tube O.D. |
|---|---|
LL — Extra-Light | 4, 6, 8 mm in the listed GE-R and GE-NPT configurations; 4 mm in the listed GE-R-ED and GEO configurations |
L — Light | 6, 8, 10, 12, 15, 18, 22, 28, 35, 42 mm |
S — Heavy | 6, 8, 10, 12, 14, 16, 20, 25, 30, 38 mm |
Available tube sizes vary according to the selected male-thread and sealing configuration.
Male-Thread & Sealing Options
Configuration | Male Connection | Sealing Arrangement |
|---|---|---|
GE-R | BSPT | Tapered Thread |
GE-NPT | NPT | Tapered Thread |
GE-R-ED | BSPP | ED Seal |
GE-M-ED | Metric Parallel Thread | ED Seal |
GEO | Metric Parallel Thread | O-Ring Seal |
The male thread and sealing arrangement should be selected according to the mating female port.
BSPT and NPT are tapered-thread configurations. BSPP and Metric parallel-thread versions require the appropriate sealing arrangement rather than relying on thread interference alone.
Working Pressure
Working pressure varies according to the selected tube series, tube O.D. and connection configuration.
Series / Tube O.D. | Working Pressure |
|---|---|
LL: listed sizes | 100 bar / 1450 psi |
L: 6–18 mm | 315 bar / 4560 psi |
L: 22–42 mm | 160 bar / 2320 psi |
S: 6–14 mm | 630 bar / 9130 psi |
S: 16–30 mm | 400 bar / 5800 psi |
S: 38 mm | 315 bar / 4560 psi |
Pressure ratings should be considered together with the selected thread and sealing configuration, mating port, tube specification, tube material, wall thickness, operating temperature and complete assembled system.
For pressure- or temperature-sensitive applications, provide the complete connection and operating requirements for review.
Thread & Port Considerations
Correct identification of both the thread standard and sealing method is important when selecting a male connector.
BSPT, NPT, BSPP and Metric threads are different connection systems and should not be selected based on nominal thread size alone.
For parallel-thread connections, the sealing arrangement must also match the mating port. ED-seal and O-ring configurations therefore need to be specified independently from the nominal thread size.
Where an existing fitting is being replaced, provide the current part number, thread specification, drawing or clear dimensional information for review.
Size & Configuration Information
The GE Series combines a 24° cutting-ring metric tube connection with a straight male threaded port connection.
Tube O.D., LL/L/S series, male-thread type, thread size and sealing arrangement vary by configuration.
Dimensions and ordering numbers are configuration-specific. Detailed dimensional information can be provided for quotation and technical review.
Materials
316 stainless steel is the standard material for this series.
Material selection should take into account the fluid medium, operating environment, temperature and corrosion requirements.
Specify the required material together with the tube size, series, thread configuration and quantity when requesting a quotation.
Installation & System Considerations
Correct matching of the tube size, tube series, male thread, sealing arrangement and mating port is important for connection performance.
Tube preparation and cutting-ring assembly should follow the applicable procedure for the selected tube size and series.
The male threaded connection should be installed according to the requirements of the selected thread and sealing system. Parallel and tapered threads use different sealing principles and should not be treated as interchangeable.
Tube dimensions, wall thickness, material, mating-port geometry and operating conditions should be compatible with the selected fitting configuration.
Typical Applications
Single Ferrule Hydraulic Male Connectors are commonly used for:
- Pumps and hydraulic control equipment
- Valves and manifolds
- Industrial machinery
- Mobile and stationary hydraulic equipment
- Machine tool hydraulic systems
- Hydraulic cylinders and actuators
- Hydraulic tube-to-port connections
Selection & Ordering Information
To specify the required Hydraulic Male Connector, provide:
- Tube O.D.
- Tube Series — LL, L or S
- Male-thread type — BSPT, NPT, BSPP or Metric
- Male-thread size
- Required sealing configuration
- Material
- Tube specification and wall thickness
- Operating pressure and temperature
- Quantity
Existing part numbers, drawings, BOMs or product references can also be provided for product matching and quotation review.
