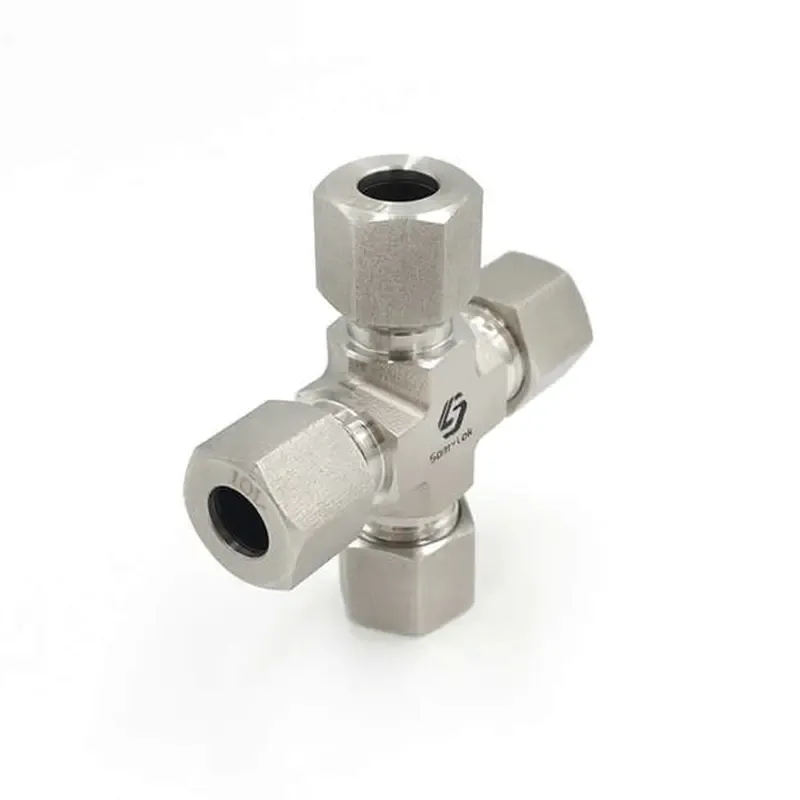

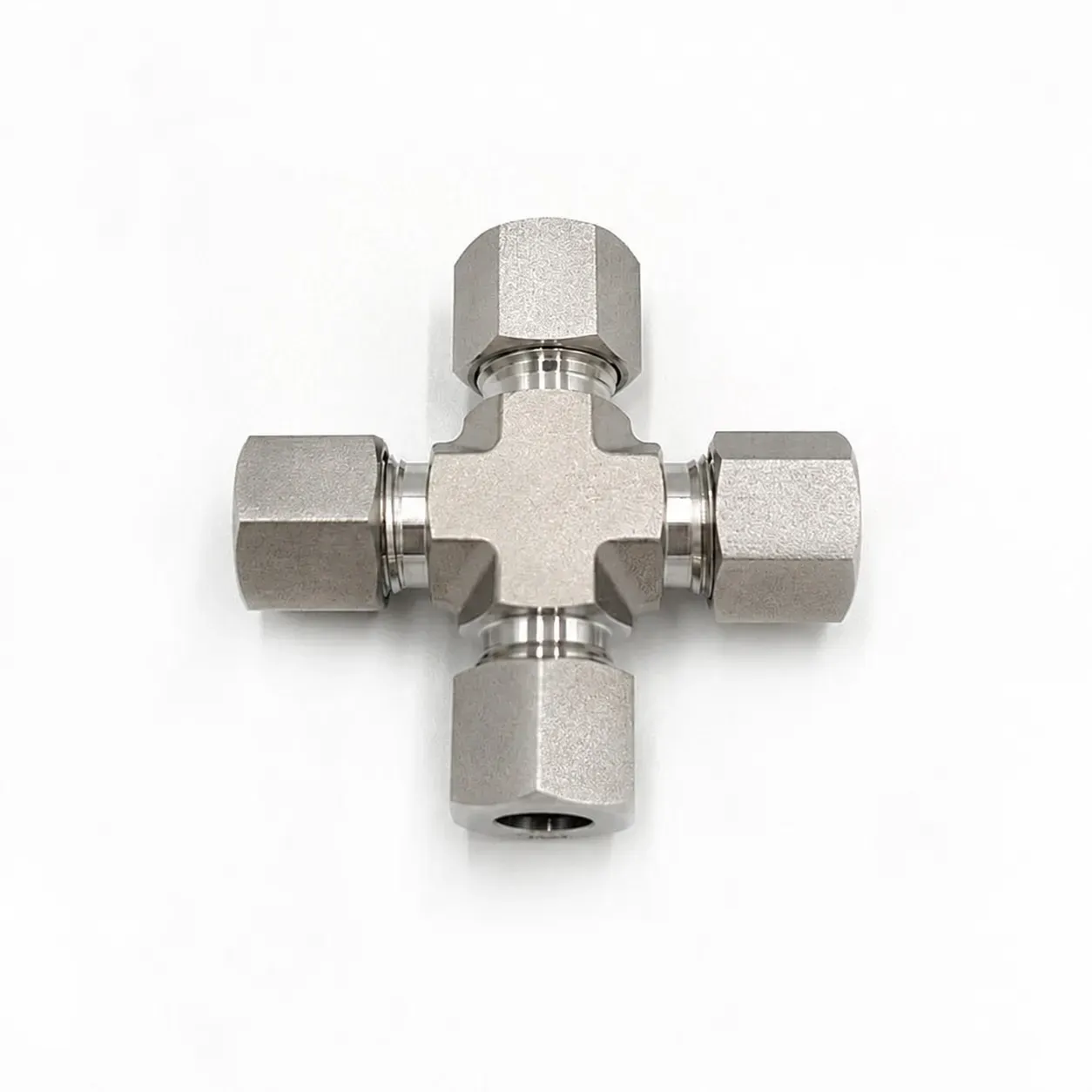

Single Ferrule Hydraulic Union Cross
24° cutting-ring hydraulic union cross for connecting four metric tubes of the same outside diameter. Available in LL, L and S series for multi-directional hydraulic and industrial fluid systems.
Specifications
- Series
- K Series
- Connection System
- 24° Cutting Ring
- Tube O.D.
- 4–42 mm, depending on series
- Tube Series
- LL / L / S
- Configuration
- Equal Union Cross
- Standard Basis
- ISO 8434-1 / DIN 2353
- Standard Material
- 316 Stainless Steel
Overview
The K Series Single Ferrule Hydraulic Union Cross provides a four-way connection between metric tubes of the same outside diameter.
The fitting uses 24° cutting-ring connections at all four ends, allowing four tube sections to be connected without intermediate threaded connections. The connection system is based on ISO 8434-1 / DIN 2353.
LL, L and S series are available for different tube sizes and system requirements.
Key Features
- Four-way connection between equal-size metric tubes
- 24° cutting-ring tube connections at all four ends
- LL, L and S series options
- Metric tube O.D. range from 4 to 42 mm, depending on series
- No pipe-thread connections required
- 316 stainless steel as the standard material
- Suitable for multi-directional hydraulic tube circuits
- ISO 8434-1 / DIN 2353 connection system
Engineering Specifications
Item | Specification |
|---|---|
Product Type | Single Ferrule Hydraulic Union Cross |
Product Series | K Series |
Connection | Four Metric Tube Ends |
Connection System | 24° Cutting Ring |
Configuration | Equal Union Cross |
Tube Series | LL / L / S |
Tube O.D. | 4–42 mm, depending on series |
Standard Basis | ISO 8434-1 / DIN 2353 |
Standard Material | 316 Stainless Steel |
Working Pressure | Series- and size-dependent |
Dimensions | Series- and size-specific |
Tube Series & Size Options
K Series Hydraulic Union Crosses are available in LL (Extra-Light), L (Light) and S (Heavy) configurations.
Available tube sizes vary by series:
Series | Tube O.D. |
|---|---|
LL – Extra-Light | 4, 6, 8 mm |
L – Light | 6, 8, 10, 12, 15, 18, 22, 28, 35, 42 mm |
S – Heavy | 6, 8, 10, 12, 14, 16, 20, 25, 30, 38 mm |
Select the tube series and tube O.D. according to the required system configuration and operating conditions.
Working Pressure
Working pressure varies according to the selected tube series and tube size.
Series / Tube O.D. | Working Pressure |
|---|---|
LL: 4–8 mm | 100 bar / 1450 psi |
L: 6–18 mm | 315 bar / 4560 psi |
L: 22–42 mm | 160 bar / 2320 psi |
S: 6–14 mm | 630 bar / 9130 psi |
S: 16–30 mm | 400 bar / 5800 psi |
S: 38 mm | 315 bar / 4560 psi |
Pressure ratings should be considered together with the tube specification, tube material, wall thickness, operating temperature and complete assembled system.
For pressure- or temperature-sensitive applications, provide the tube specification and operating conditions for review.
Size & Configuration Information
Each K Series Hydraulic Union Cross connects four metric tubes of the same outside diameter in an equal cross configuration. Dimensions and ordering numbers vary by tube O.D. and LL, L or S series. Configuration-specific dimensional information can be provided for quotation and technical review.
Materials
316 stainless steel is the standard material for this series.
Material selection should take into account the fluid medium, operating environment, temperature and corrosion requirements.
Specify the required material together with the tube O.D., series and quantity when requesting a quotation.
Installation & System Considerations
Correct assembly is important to the performance of a 24° cutting-ring connection.
Tube preparation, cutting-ring orientation and tightening should follow the applicable assembly procedure for the selected tube size and series. All four tube connections should be assembled using compatible tube specifications and appropriate installation procedures.
Tube dimensions, wall thickness and material should be compatible with the selected fitting configuration.
For critical hydraulic applications, provide the complete tube specification and operating conditions for review.
Typical Applications
Single Ferrule Hydraulic Union Crosses are commonly used for:
- Multi-branch hydraulic circuits
- Mobile and stationary hydraulic equipment
- Industrial machinery
- Process and utility equipment
- Test and control systems
- Four-way metric tube connections
Selection & Ordering Information
To specify the required Hydraulic Union Cross, provide:
- Tube O.D.
- Tube Series — LL, L or S
- Material
- Tube specification and wall thickness
- Operating pressure and temperature
- Quantity
Existing part numbers, drawings, BOMs or product references can also be provided for product matching and quotation review.
