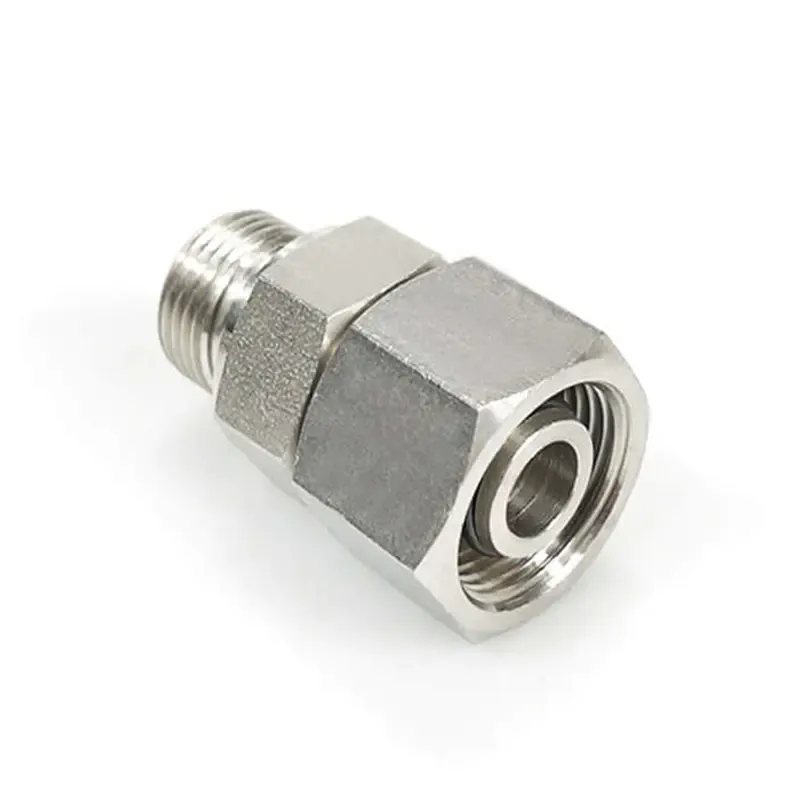

Single Ferrule Hydraulic Swivel Male Connector
Straight hydraulic swivel male connector for connecting a metric hydraulic tube system to a threaded port through a 24° swivel interface. Available in L and S series with BSPP, Metric and NPT male-thread configurations for hydraulic and industrial fluid systems.
Specifications
- Series
- EGE Series
- Connection
- Metric Tube System × Male Thread
- Connection System
- 24° Swivel Connection × Male Port Connection
- Tube O.D.
- 6–42 mm, depending on series
- Tube Series
- L / S
- Male-Thread Options
- BSPP / Metric / NPT
- Sealing Options
- ED Seal / Thread-Specific Sealing
- Configuration
- Straight Swivel Male Connecto
- Standard Basis
- ISO 8434-1 / DIN 2353
- Standard Material
- 316 Stainless Steel
Overview
The EGE Series Single Ferrule Hydraulic Swivel Male Connector provides a straight connection between a metric hydraulic tube system and a threaded equipment or component port.
The swivel side interfaces with the corresponding 24° hydraulic tube-fitting connection, while the male end is available with different thread and sealing configurations.
BSPP and Metric parallel-thread versions are available with an ED sealing arrangement, while NPT versions use a tapered male-thread connection.
L and S series are available for different metric tube sizes and hydraulic system requirements.
Key Features
- Straight swivel-to-male-port configuration
- 24° hydraulic swivel connection
- L and S series options
- Metric tube O.D. range from 6 to 42 mm, depending on series
- BSPP, Metric and NPT male-thread options
- ED-seal configurations for BSPP and Metric parallel threads
- Swivel architecture simplifies connection and installation
- 316 stainless steel as the standard material
- Suitable for hydraulic and industrial fluid systems
- 24° connection architecture based on ISO 8434-1 / DIN 2353
Engineering Specifications
Item | Specification |
|---|---|
Product Type | Single Ferrule Hydraulic Swivel Male Connector |
Product Series | EGE Series |
Connection | Metric Tube System × Male Thread |
Swivel Interface | 24° Hydraulic Swivel Connection |
Tube Series | L / S |
Tube O.D. | 6–42 mm, depending on series |
Male-Thread Options | BSPP / Metric / NPT |
BSPP Configuration | EGE-R-ED |
Metric Configuration | EGE-M-ED |
NPT Configuration | EGE-NPT |
Configuration | Straight Swivel Male Connector |
Standard Basis | ISO 8434-1 / DIN 2353 |
Standard Material | 316 Stainless Steel |
Working Pressure | Series- and size-dependent |
Tube Series & Size Options
EGE Series Hydraulic Swivel Male Connectors are available in L (Light) and S (Heavy) configurations.
Series | Tube O.D. |
|---|---|
L — Light | 6, 8, 10, 12, 15, 18, 22, 28, 35, 42 mm |
S — Heavy | 6, 8, 10, 12, 14, 16, 20, 25, 30, 38 mm |
Available male-thread sizes vary according to the selected tube O.D., series and connection configuration.
Male-Thread & Sealing Options
Configuration | Male Connection | Sealing Arrangement |
|---|---|---|
EGE-R-ED | BSPP | ED Seal |
EGE-M-ED | Metric Parallel Thread | ED Seal |
EGE-NPT | NPT | Tapered Thread Connection |
The BSPP and Metric versions use a dedicated ED sealing arrangement at the male port connection. NPT versions use a tapered-thread connection.
Thread type, thread size and sealing arrangement should be selected according to the mating port.
Working Pressure
Working pressure varies according to the selected tube series, tube O.D. and connection configuration.
Series / Tube O.D. | Working Pressure |
|---|---|
L: 6–18 mm | 315 bar / 4560 psi |
L: 22–42 mm | 160 bar / 2320 psi |
S: 6–14 mm | 630 bar / 9130 psi |
S: 16–30 mm | 400 bar / 5800 psi |
S: 38 mm | 315 bar / 4560 psi |
Pressure ratings should be considered together with the selected thread configuration, mating port, tube specification, tube material, wall thickness, operating temperature and complete assembled system.
For pressure- or temperature-sensitive applications, provide the complete connection and operating requirements for review.
Size & Configuration Information
The EGE Series combines a 24° hydraulic swivel interface with a straight male threaded port connection.
Tube O.D., L or S series, male-thread type and thread size vary by configuration. BSPP and Metric versions are available with ED sealing arrangements, while NPT versions use tapered male threads.
Dimensions and ordering numbers are configuration-specific. Detailed dimensional information can be provided for quotation and technical review.
Materials
316 stainless steel is the standard material for this series.
Material selection should take into account the fluid medium, operating environment, temperature and corrosion requirements.
Specify the required material together with the tube size, series, thread configuration and quantity when requesting a quotation.
Installation & System Considerations
Correct matching of the 24° swivel interface, male thread and mating port is important for connection performance.
BSPP, Metric and NPT threads are different connection systems and should not be selected based on nominal size alone. The mating port standard and required sealing arrangement should be confirmed before ordering.
The swivel configuration can simplify assembly where component orientation or installation access makes a fixed connector less convenient.
Tube dimensions, wall thickness, material, mating-port geometry and operating conditions should be compatible with the selected fitting configuration.
Typical Applications
Single Ferrule Hydraulic Swivel Male Connectors are commonly used for:
- Pumps and hydraulic control equipment
- Valves and manifolds
- Industrial machinery
- Mobile and stationary hydraulic equipment
- Machine tool hydraulic systems
- Hydraulic component connections
- Equipment installations requiring a detachable straight swivel connection
Selection & Ordering Information
To specify the required Hydraulic Swivel Male Connector, provide:
- Tube O.D.
- Tube Series — L or S
- Male-thread type — BSPP, Metric or NPT
- Male-thread size
- Required sealing configuration
- Material
- Tube specification and wall thickness
- Operating pressure and temperature
- Quantity
Existing part numbers, drawings, BOMs or product references can also be provided for product matching and quotation review.
