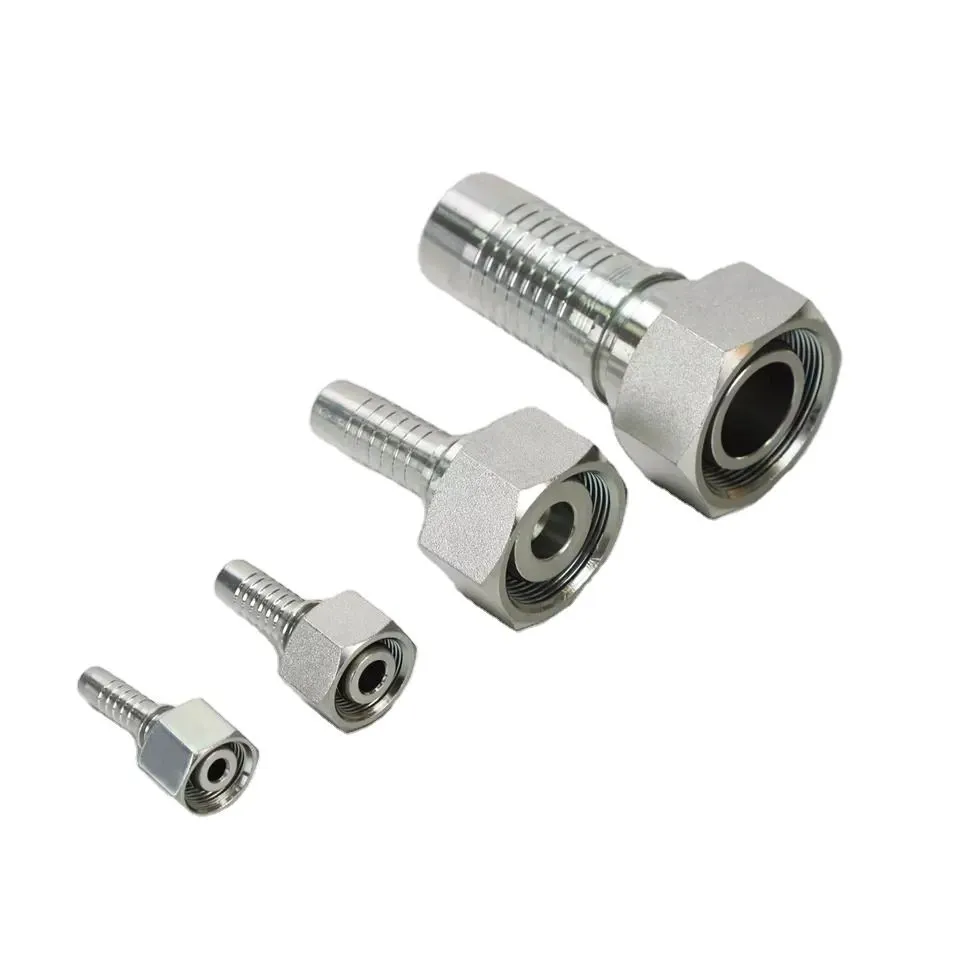

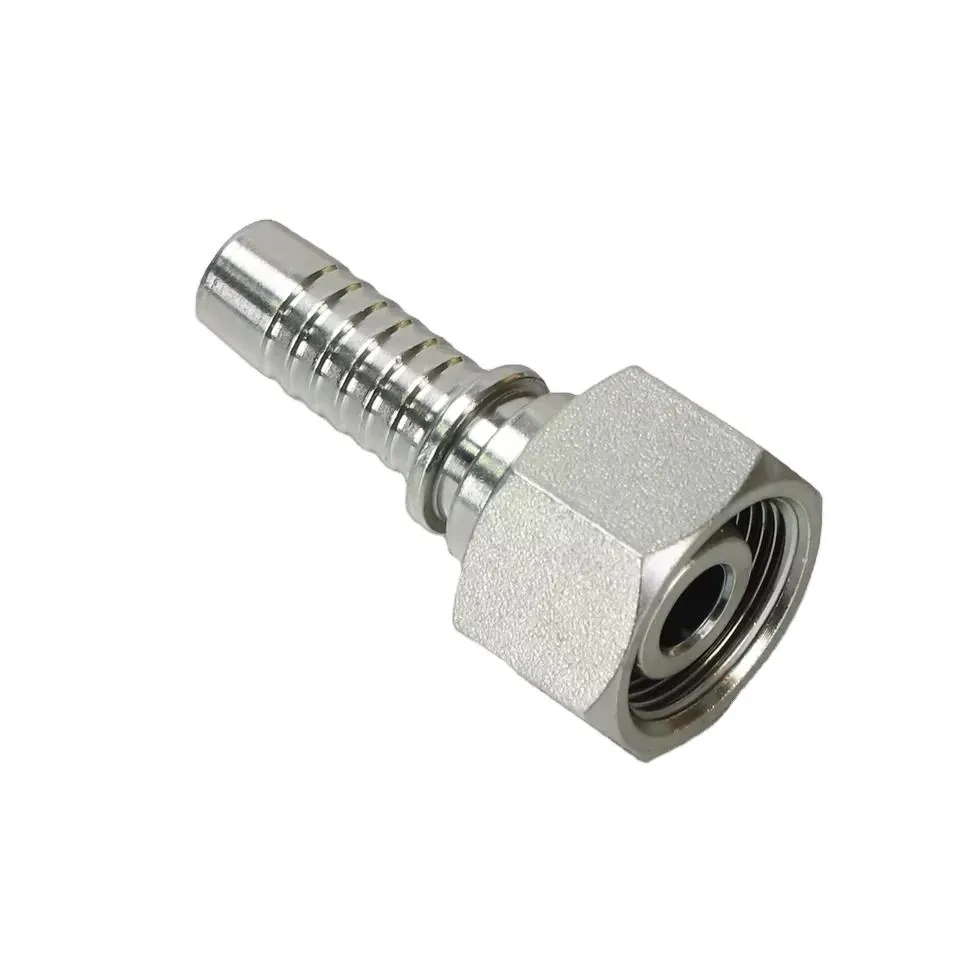

Metric Heavy Female 24° Cone O-Ring Hydraulic Hose Fitting
Metric heavy female 24° cone O-ring hydraulic hose fitting with a straight hose stem for hydraulic hose assemblies. Available in stainless steel and carbon steel for compatible metric heavy-series connections.
Specifications
- Product Type
- Hydraulic Hose Fitting
- Series / Reference
- 20511
- Materials
- Stainless Steel, Carbon Steel
- Connection Type
- Metric Heavy Female 24° Cone O-Ring
- Configuration
- Straight
- Hose End
- Hose Stem
- Reference Models
- 20511-14-04W, 20511-16-04W
Metric Heavy-Series Connection for Hydraulic Hose Assemblies
The Metric Heavy Female 24° Cone O-Ring Hydraulic Hose Fitting provides a hose-to-port connection between a hydraulic hose assembly and a compatible metric heavy-series connection.
Its straight configuration combines a female 24° cone O-ring connection with a hose stem, providing a compact connection solution for hydraulic and industrial fluid systems.
Key Features
- Metric heavy-series female connection
- 24° cone O-ring sealing interface
- Straight hydraulic hose fitting configuration
- Hose stem for hydraulic hose assemblies
- Available in stainless steel and carbon steel
- Designed for compatible metric hydraulic connections
Material Options
Stainless steel and carbon steel versions are available for different hydraulic system requirements. Stainless steel is commonly selected where corrosion resistance is important, while carbon steel is widely used for general hydraulic applications. Material selection should consider the operating environment, fluid compatibility and system requirements.
Metric Female 24° Cone O-Ring Connection
The female connection is designed to mate with a compatible metric heavy-series 24° cone interface.
The O-ring forms part of the connection’s sealing arrangement, while the mating geometry provides the mechanical interface between the connected components. Correct thread size and compatible connection geometry should be confirmed when selecting a replacement or new hose fitting.
Designed for Hydraulic Hose Assemblies
Unlike a conventional metric adapter used between rigid connection points, this fitting incorporates a hose stem for integration into a hydraulic hose assembly.
The opposite end provides the metric female connection required to connect the hose assembly to compatible hydraulic equipment, tubing connections or other system components.
Straight Hose Fitting Configuration
The straight configuration is suitable where the hydraulic hose can approach the connection point without requiring a change in direction.
For installations with restricted space or different hose-routing requirements, angled hose fitting configurations may be selected where available.
Typical Applications
Metric heavy female 24° cone O-ring hydraulic hose fittings are commonly used in:
- Hydraulic machinery and equipment
- Mobile hydraulic systems
- Industrial fluid power systems
- Hydraulic power units
- Machinery and equipment connections
- Hydraulic hose assemblies using compatible metric connections
Selecting the Correct Fitting
Correct selection requires matching both the metric connection and the hydraulic hose side of the assembly.
When specifying a fitting, confirm the required thread size, heavy-series connection, hose size and hose specification. For replacement or custom requirements, drawings, samples or existing fitting references can help confirm the correct configuration.
Request a Quote
Need a metric heavy female 24° cone O-ring hydraulic hose fitting for a new or replacement hose assembly?
Send us your required connection size, hose specification, material, quantity, drawing or existing fitting reference. Our team can help confirm the appropriate configuration for your application.
