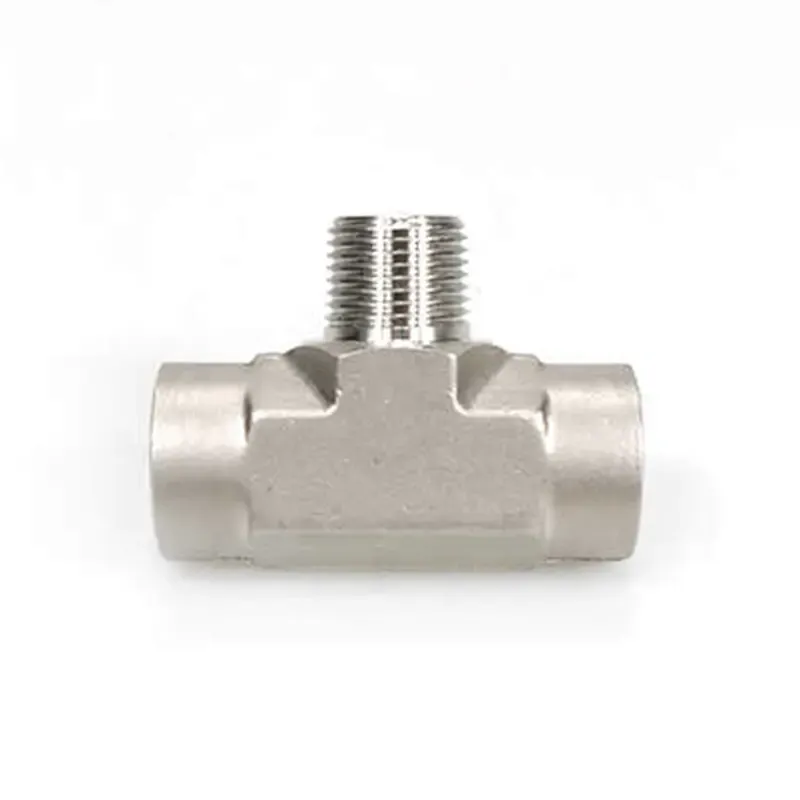

Male Branch Tee
316 stainless steel male branch tee for creating a 90° branch connection in threaded instrumentation, process and industrial fluid systems. Features two female threaded run ports and one male threaded branch port, with NPT and selected ISO/BSP tapered configurations available.
Specifications
- Series
- TMB Series
- Fitting Type
- Male Branch Tee
- Configuration
- Female Run × Female Run × Male Branch
- Primary Thread
- NPT
- NPT Standard
- ASME B1.20.1
- Available Thread Types
- NPT and ISO/BSP Tapered
- NPT Size Range
- 1/16 to 1 in.
- Standard Material
- 316 Stainless Steel
- Material Specification
- ASTM A182 Forged
- Body Construction
- Machined from Forging
- Working Pressure
- Size and configuration dependent
Overview
The TMB Series Male Branch Tee is a three-port pipe fitting designed to create a 90° branch from a threaded fluid line.
The two opposing run ports are female threaded connections, while the perpendicular branch port is male threaded. This configuration allows a male branch connection to be introduced between two female-threaded run connections in instrumentation, process piping and industrial fluid systems.
NPT is the primary thread configuration. Selected ISO/BSP tapered-thread versions are also available.
Key Features
- Female × Female run with male branch configuration
- Three-port tee for 90° branch connections
- Male threaded connection located on the branch
- NPT configurations from 1/16 to 1 in.
- Selected ISO/BSP tapered configurations available
- NPT threads based on ASME B1.20.1
- 316 stainless steel as the standard material
- Shaped body manufactured from forging
- Suitable for instrumentation, process and industrial fluid systems
Engineering Specifications
Parameter | Specification |
|---|---|
Product Type | Male Branch Tee |
Series | TMB |
Body Style | Tee |
Run Connections | Female × Female |
Branch Connection | Male |
Primary Configuration | Female NPT × Female NPT × Male NPT |
NPT Standard | ASME B1.20.1 |
Additional Configuration | Female ISO/BSP Tapered × Female ISO/BSP Tapered × Male ISO/BSP Tapered |
NPT Size Range | 1/16 to 1 in. |
Standard Material | 316 Stainless Steel |
Material Specification | ASTM A182 Forged |
Working Pressure | Size dependent |
NPT Sizes & Working Pressure
For equal-size NPT configurations in 316 stainless steel:
NPT Size | Configuration | Working Pressure |
|---|---|---|
1/16 in. | Female × Female × Male | 9,200 psi / 633 bar |
1/8 in. | Female × Female × Male | 6,200 psi / 427 bar |
1/4 in. | Female × Female × Male | 7,200 psi / 496 bar |
3/8 in. | Female × Female × Male | 5,600 psi / 385 bar |
1/2 in. | Female × Female × Male | 5,600 psi / 385 bar |
3/4 in. | Female × Female × Male | 5,100 psi / 351 bar |
1 in. | Female × Female × Male | 5,300 psi / 365 bar |
Working-pressure ratings shown above apply to the listed 316 stainless steel configurations. The allowable working pressure of a complete system is limited by its lowest-rated component and applicable operating conditions.
Thread Configurations
Available configurations include:
- Female NPT × Female NPT × Male NPT
- Female ISO/BSP Tapered × Female ISO/BSP Tapered × Male ISO/BSP Tapered
For this tee configuration, the two opposing ports form the female run, while the perpendicular connection forms the male branch.
Branch vs. Run Configuration
The terms branch and run describe the location of the tee connections and are important when selecting the correct fitting.
On the TMB Series Male Branch Tee:
- The two aligned ports form the run and are female threaded.
- The perpendicular 90° port forms the branch and is male threaded.
A Male Branch Tee should therefore not be treated as interchangeable with a Male Run Tee or other mixed-thread tee configuration.
Thread & Sealing Considerations
NPT is a tapered pipe thread. Sealing is developed through thread engagement together with a thread-sealing method appropriate for the fluid, temperature and operating conditions.
ISO/BSP tapered threads also use tapered-thread engagement but should not be assumed interchangeable with NPT. Thread form, pitch and dimensional standard must match the mating connection.
The thread standard and size of all three ports should be verified before ordering or installation.
Material
Standard Material: 316 Stainless Steel
TMB Series Male Branch Tees are manufactured from 316 stainless steel forgings to ASTM A182.
Forged construction is appropriate for the shaped tee body and provides a robust body configuration for instrumentation, process and industrial fluid applications.
Typical Applications
Male Branch Tees are commonly used in:
- Pressure measurement lines
- Valve and manifold connections
- Process piping
- Hydraulic and utility systems
- Test and sampling systems
- Pumps and process equipment
- Industrial fluid distribution systems
Selection & Ordering Information
To specify the required Male Branch Tee, provide:
- Thread type
- Thread size
- Material
- Required working pressure
- Operating temperature
- Fluid or process medium
- Quantity
Confirm that the required configuration is female run × female run × male branch. For non-NPT configurations, specify the exact thread standard rather than nominal size alone.
Existing part numbers, drawings, BOMs or product references can also be provided for product matching and quotation review.
