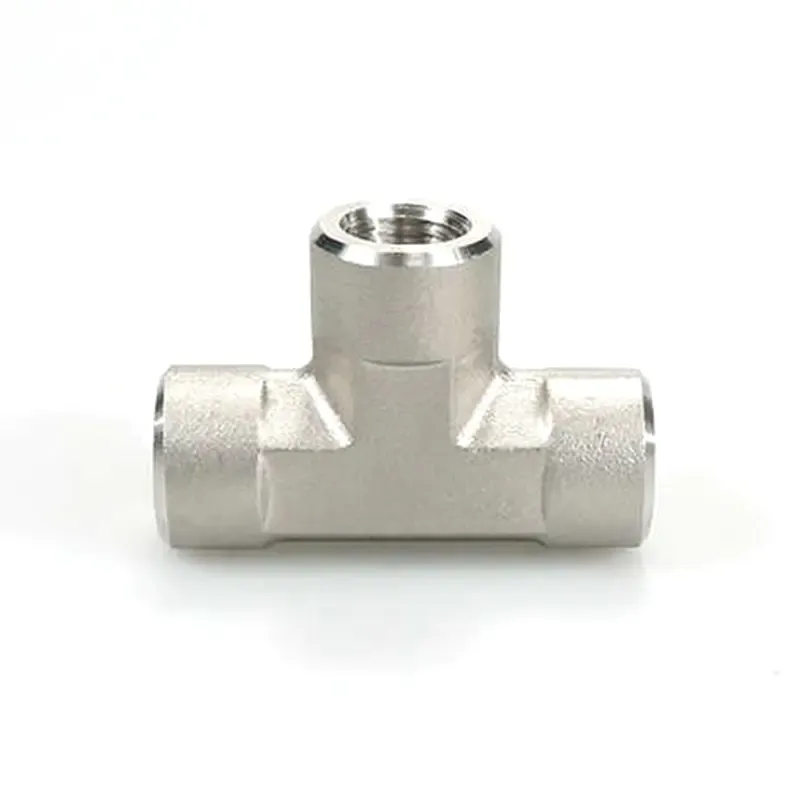

Female Tee
316 stainless steel female tee for creating three-way threaded connections in instrumentation, process and industrial fluid systems. Features three female ports and is available with NPT and selected ISO/BSP tapered threads, including heavy-wall NPT configurations for higher-pressure requirements.
Specifications
- Series
- TFT Series
- Fitting Type
- Female Tee
- Configuration
- Female × Female × Female
- Primary Thread
- NPT
- NPT Standard
- ASME B1.20.1
- Available Thread Types
- NPT and ISO/BSP Tapered
- NPT Size Range
- 1/16 to 1 1/2 in.
- Heavy-Wall NPT Size Range
- 1/16 to 1 in.
- Standard Material
- 316 Stainless Steel
- Material Specification
- ASTM A182 Forged
- Body Construction
- Machined from Forging
- Working Pressure
- Size and configuration dependent
Overview
The TFT Series Female Tee is a three-port pipe fitting designed to create a 90° branch from a threaded fluid line.
All three ports are female threaded, providing two aligned run connections and one perpendicular branch connection. This configuration is suitable for connecting three male-threaded components or pipe connections in instrumentation, process piping and industrial fluid systems.
NPT is the primary thread configuration. Selected ISO/BSP tapered-thread versions and heavy-wall NPT configurations are also available.
Key Features
- Three female threaded ports
- Two aligned run ports and one 90° branch port
- Female NPT sizes from 1/16 to 1 1/2 in.
- Heavy-wall NPT configurations from 1/16 to 1 in.
- Selected ISO/BSP tapered configurations available
- NPT threads based on ASME B1.20.1
- 316 stainless steel as the standard material
- Shaped body manufactured from forging
- Suitable for instrumentation, process and industrial fluid systems
Engineering Specifications
Parameter | Specification |
|---|---|
Product Type | Female Tee |
Series | TFT |
Body Style | Tee |
Connection Configuration | Female × Female × Female |
Primary Thread Type | NPT |
NPT Standard | ASME B1.20.1 |
Additional Thread Configuration | Female ISO/BSP Tapered |
Standard NPT Size Range | 1/16 to 1 1/2 in. |
Heavy-Wall NPT Size Range | 1/16 to 1 in. |
Standard Material | 316 Stainless Steel |
Material Specification | ASTM A182 Forged |
Working Pressure | Size and configuration dependent |
NPT Sizes & Working Pressure
For standard equal-size Female NPT configurations in 316 stainless steel:
NPT Size | Working Pressure |
|---|---|
1/16 in. | 6,700 psi / 460 bar |
1/8 in. | 6,200 psi / 427 bar |
1/4 in. | 7,200 psi / 496 bar |
3/8 in. | 5,600 psi / 385 bar |
1/2 in. | 5,600 psi / 385 bar |
3/4 in. | 5,100 psi / 351 bar |
1 in. | 6,400 psi / 440 bar |
1 1/4 in. | 3,100 psi / 213 bar |
1 1/2 in. | 5,100 psi / 351 bar |
Working-pressure ratings apply to the listed 316 stainless steel configurations. The allowable working pressure of a complete system is limited by its lowest-rated component and applicable operating conditions.
Heavy-Wall NPT Configurations
Heavy-wall Female NPT configurations are available for applications requiring higher working-pressure capability.
NPT Size | Working Pressure |
|---|---|
1/16 in. | 10,000 psi / 689 bar |
1/8 in. | 10,000 psi / 689 bar |
1/4 in. | 10,000 psi / 689 bar |
3/8 in. | 10,000 psi / 689 bar |
1/2 in. | 10,000 psi / 689 bar |
3/4 in. | 10,000 psi / 689 bar |
1 in. | 10,000 psi / 689 bar |
Heavy-wall configurations are separate from the standard TFT configurations and should be specified when ordering.
Thread Configurations
Available configurations include:
- Female NPT × Female NPT × Female NPT
- Female ISO/BSP Tapered × Female ISO/BSP Tapered × Female ISO/BSP Tapered
All three ports use the same thread family in the catalogue configurations shown.
Three-Port Configuration
The Female Tee provides three female threaded connections:
- Two opposing female ports form the straight run
- One perpendicular female port forms the 90° branch
Because all three ports are female threaded, the TFT Series differs from mixed-gender configurations such as Male Branch Tee and Female Run Tee.
Thread & Sealing Considerations
NPT is a tapered pipe thread. Sealing is developed through thread engagement together with a thread-sealing method appropriate for the fluid, temperature and operating conditions.
ISO/BSP tapered threads also use tapered-thread engagement but should not be assumed interchangeable with NPT. Thread form, pitch and dimensional standard must match the mating connection.
Thread standard and size should be verified for all three ports before ordering or installation.
Material
Standard Material: 316 Stainless Steel
TFT Series Female Tees are manufactured from 316 stainless steel forgings to ASTM A182.
Forged construction is suitable for the shaped tee body and provides a robust body configuration for instrumentation, process and industrial fluid applications.
Typical Applications
Female Tees are commonly used in:
- Instrumentation piping
- Pressure measurement systems
- Valve and manifold connections
- Process piping
- Hydraulic and utility systems
- Test and sampling systems
- Pumps and process equipment
- Industrial fluid distribution systems
Selection & Ordering Information
To specify the required Female Tee, provide:
- Thread type
- Thread size
- Standard or heavy-wall configuration
- Material
- Required working pressure
- Operating temperature
- Fluid or process medium
- Quantity
For non-NPT configurations, specify the exact thread standard rather than nominal size alone.
Existing part numbers, drawings, BOMs or product references can also be provided for product matching and quotation review.
