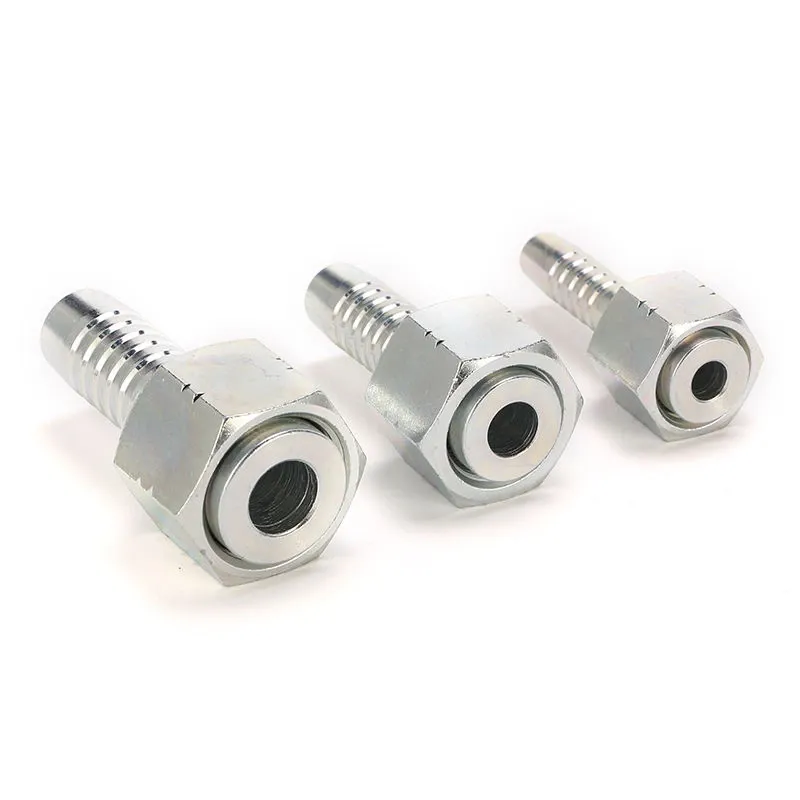

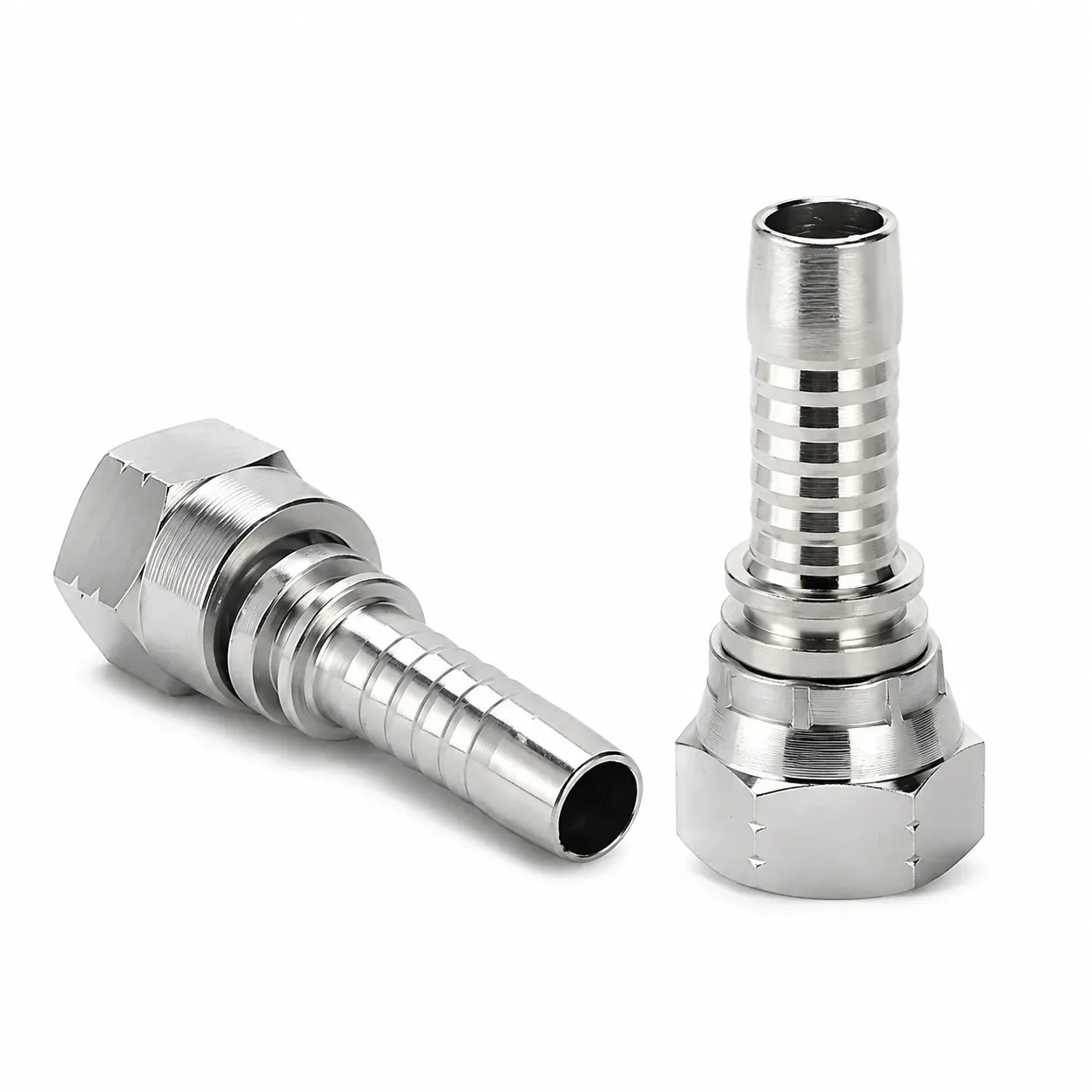

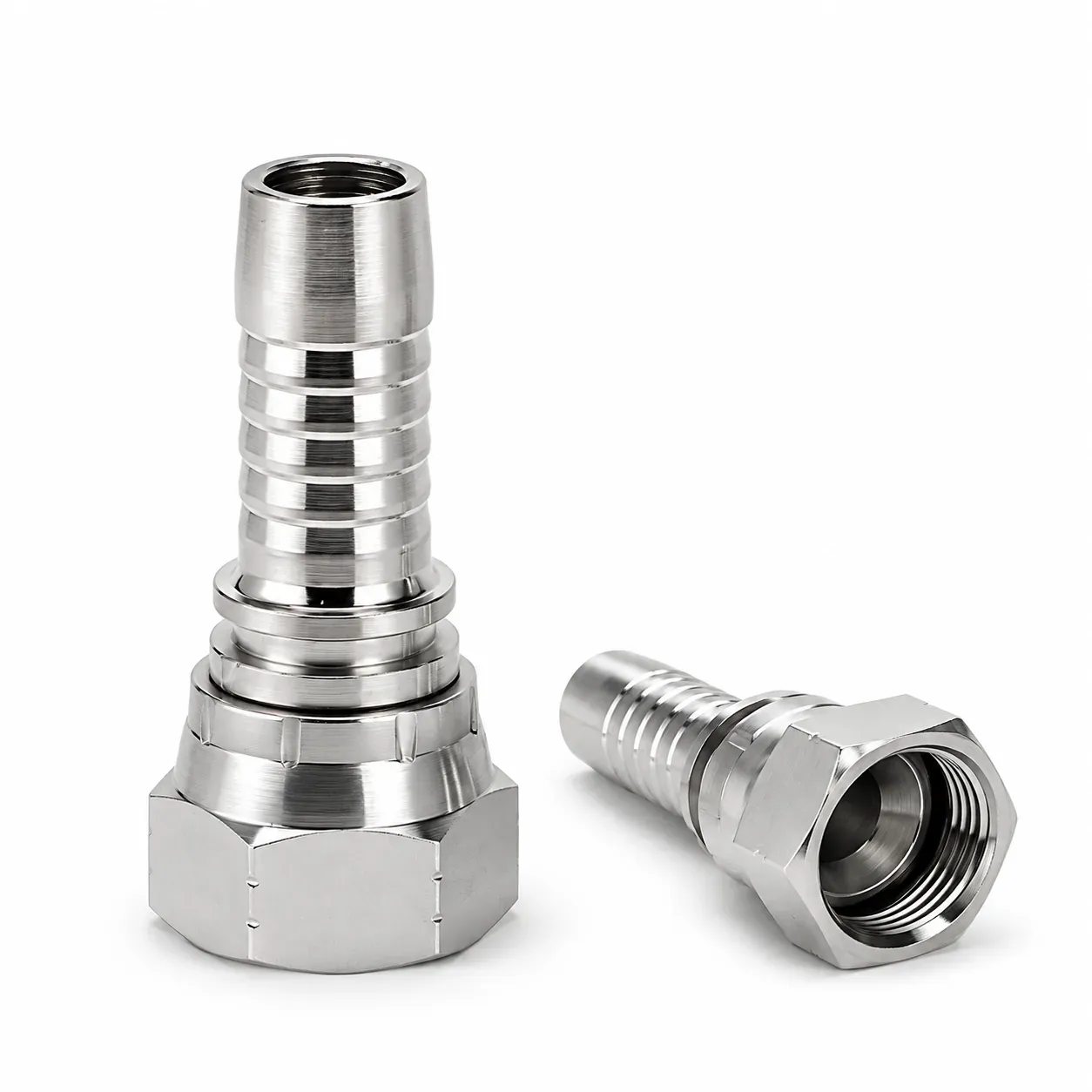

JIC Female Swivel Hydraulic Hose Fitting
JIC female swivel hydraulic hose fitting with a 37° flare connection and straight hose stem for hydraulic hose assemblies. Available in stainless steel and carbon steel to suit different hydraulic system requirements.
Specifications
- Product Type
- Hydraulic Hose Fitting
- Series / Reference
- 26711
- Materials
- Stainless Steel, Carbon Steel
- Connection Type
- Female JIC 37° Flare Swivel
- Configuration
- Straight
- Hose End
- Hose Stem
- Reference Model
- 26711-04-04
JIC Female Swivel Connection for Hydraulic Hose Assemblies
The JIC Female Swivel Hydraulic Hose Fitting provides a hose-to-port connection between a hydraulic hose assembly and a compatible male JIC connection.
Its straight configuration combines a female JIC 37° flare swivel connection with a hose stem, providing a practical connection interface for hydraulic and industrial fluid systems.
Key Features
- Female JIC 37° flare swivel connection
- Straight hydraulic hose fitting configuration
- Hose stem for hydraulic hose assemblies
- Available in stainless steel and carbon steel
- Swivel connection for easier hose installation
- Suitable for compatible JIC hydraulic connections
Material Options
Stainless steel and carbon steel versions are available for different hydraulic system requirements. Stainless steel is commonly selected where corrosion resistance is important, while carbon steel is widely used for general hydraulic applications. Material selection should consider the operating environment, fluid compatibility and system requirements.
Female JIC 37° Flare Connection
The swivel nut can rotate during installation without requiring the complete hose assembly to rotate, which is particularly useful when connecting an assembled hose to equipment, valves, manifolds or other hydraulic components.
Designed for Hose-to-Port Connections
Unlike a conventional JIC adapter or flare fitting used between rigid connection points, this product incorporates a hose stem on one end and a female JIC swivel connection on the other.
This configuration allows a flexible hydraulic hose assembly to terminate at equipment or piping components using a compatible JIC interface.
Straight Hose Fitting Configuration
The straight configuration is intended for connection points where the hose can approach the mating port without requiring a directional elbow.
Where installation space or hose routing requires a change in direction, angled hose fitting configurations may be selected instead.
Typical Applications
JIC female swivel hydraulic hose fittings are commonly used in:
- Hydraulic machinery and equipment
- Mobile hydraulic systems
- Hydraulic power units
- Industrial fluid power systems
- Equipment and machinery connections
- Hydraulic hose assemblies using JIC interfaces
Selecting the Correct Fitting
Correct fitting selection depends on both sides of the hose assembly. The JIC connection size must match the mating port, while the hose stem must be suitable for the selected hose and assembly method.
When requesting a replacement or custom hose fitting, provide the connection size, hose size and specification, quantity, and any available drawing, sample or existing fitting reference.
Request a Quote
Need a JIC female swivel hydraulic hose fitting for a new or replacement hose assembly?
Send us your required connection size, hose specification, quantity, drawing or existing fitting reference. Our team can help confirm the appropriate configuration for your application.
