Quick Couplings

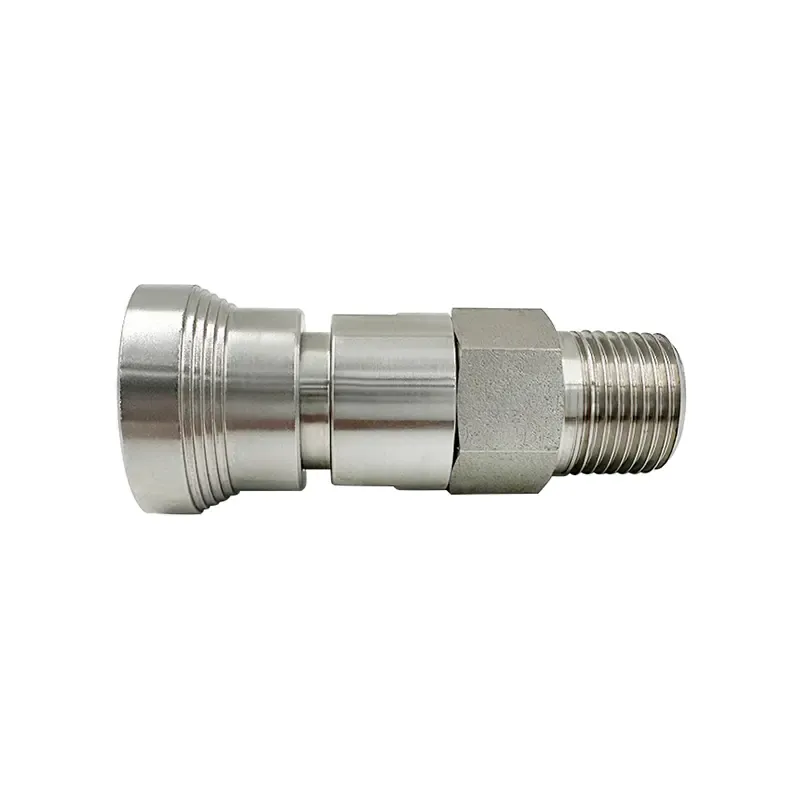

Instrumentation Quick Connect Body
316 stainless steel instrumentation quick connect body for fast connection and disconnection of fluid lines. Available in QC4, QC6 and QC8 body sizes with multiple tube and threaded end connections for instrumentation, testing and industrial fluid systems.
Specifications
- Product Type
- Quick Connect Body
- Standard Material
- 316 Stainless Steel
- Body Sizes
- QC4, QC6 & QC8
- Configuration
- Valved Body
- End Connections
- Tube Fitting, NPT, ISO/BSP Tapered & Other Options
- Thread Options
- Male & Female, depending on configuration
- Maximum Working Pressure
- Up to 3000 psig / 207 bar
- Shutoff Function
- Automatic shutoff when uncoupled
- Mating Component
- Compatible Quick Connect Stem
Instrumentation Quick Connect Body
The Instrumentation Quick Connect Body is the socket side of a quick-connect coupling used for fast connection and disconnection of instrumentation and industrial fluid lines.
Available in QC4, QC6 and QC8 body sizes, the body incorporates an internal shutoff valve that closes when the mating stem is disconnected. Multiple tube-fitting and threaded end connections are available for integration into different fluid-system layouts.
Key Features
- 316 stainless steel construction
- QC4, QC6 and QC8 body sizes
- Internal shutoff valve
- Working pressure up to 3000 psig / 207 bar, depending on configuration and operating conditions
- Multiple tube-fitting and threaded end connections
- Compact push-to-connect coupling operation
- Designed for use with compatible quick-connect stems
- Suitable for repeated connection and disconnection requirements
Body Sizes
Three quick-connect body sizes are available to accommodate different connection and flow requirements:
Body Size | Typical Thread Connection Range |
|---|---|
QC4 | 1/8 to 1/4 in. |
QC6 | 1/4 to 3/8 in. |
QC8 | 1/2 in. |
Connection availability varies according to body size and end-connection configuration.
Male NPT Body Configurations
NPT Size | Body Size | L | H |
|---|---|---|---|
1/8 in. | QC4 | 51.1 mm | 23.1 mm |
1/4 in. | QC4 | 54.9 mm | 23.1 mm |
1/4 in. | QC6 | 60.5 mm | 26.2 mm |
3/8 in. | QC6 | 60.5 mm | 26.2 mm |
1/2 in. | QC8 | 75.4 mm | 30.7 mm |
Male ISO/BSP Tapered Body Configurations
Thread Size | Body Size | L | H |
|---|---|---|---|
1/4 in. | QC4 | 54.9 mm | 23.1 mm |
3/8 in. | QC6 | 60.5 mm | 26.2 mm |
1/2 in. | QC8 | 75.4 mm | 30.7 mm |
Available End Connections
Quick-connect bodies are available with different process connections, including:
- Fractional tube fittings
- Metric tube fittings
- Male NPT
- Female NPT
- Male ISO/BSP tapered thread
- Female ISO/BSP tapered thread
- Bulkhead tube-fitting configurations
- Hose connections
Exact connection combinations depend on body size and configuration.
Shutoff Operation
The valved body automatically closes its flow path when the mating stem is disconnected.
When a compatible stem is inserted, the coupling opens according to the selected body-and-stem configuration. This allows fluid lines to be connected and disconnected quickly during normal coupling operation.
Pressure & Operating Considerations
Maximum working pressure is up to 3000 psig / 207 bar, depending on body size, mating stem, end connection, seal material, temperature and service conditions.
Coupled, uncoupled and coupling or uncoupling pressure limits may differ. The allowable operating pressure should therefore be confirmed for the exact body-and-stem combination and operating condition.
Temperature capability and fluid compatibility also depend on the selected seal material and service conditions.
Connection & Compatibility
The quick-connect body must be matched with a compatible stem of the appropriate coupling size and configuration.
QC4, QC6 and QC8 identify different quick-connect body sizes and should not be treated simply as thread sizes. Coupling size, end-connection type, connection size and shutoff configuration should all be confirmed when selecting new or replacement components.
Quick-connect components from different series or manufacturers should not be assumed to be interchangeable based only on nominal size or external appearance.
Typical Applications
- Instrumentation lines
- Test equipment and test benches
- Calibration systems
- Pressure and flow measurement systems
- Hydraulic and utility lines
- Laboratory fluid systems
- Industrial fluid and gas systems
Selection & Ordering Information
To specify the required Instrumentation Quick Connect Body, provide:
- Body size — QC4, QC6 or QC8
- End connection type
- Connection size
- Mating stem information
- Operating pressure and temperature
- Fluid or gas medium
- Seal material, when specified
- Required quantity
- Existing part number or drawing, when available
For replacement requirements, provide the existing body or stem part number, product photo, drawing or mating-component information for configuration review.
