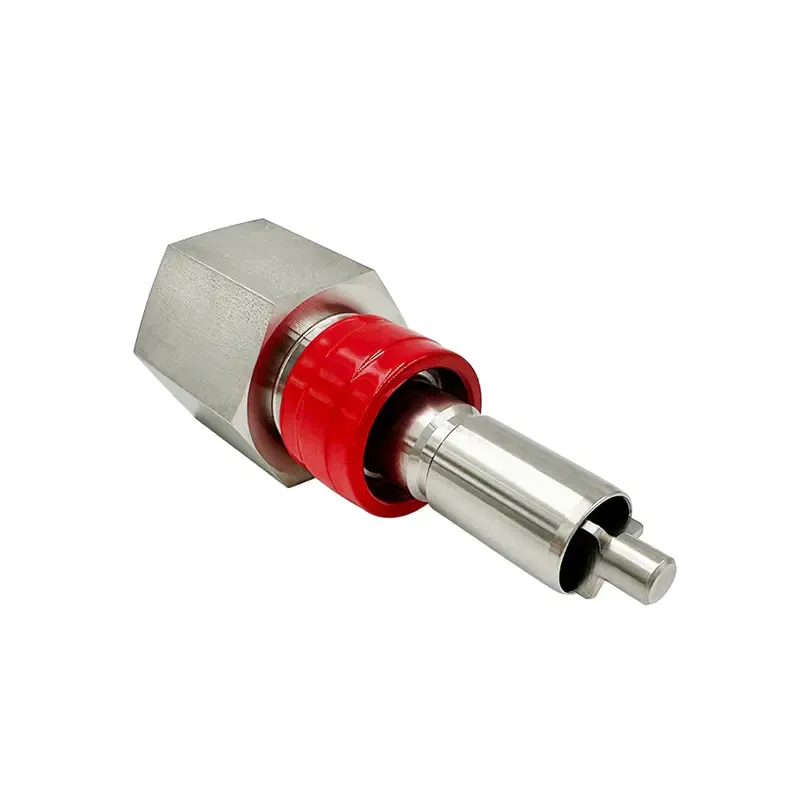

Instrumentation Quick Connect Couplings
316 stainless steel instrumentation quick connect couplings for fast make-and-break fluid connections. Available in QC4, QC6 and QC8 sizes with single-end shutoff, double-end shutoff and full-flow configurations for instrumentation, testing and industrial fluid systems.
Specifications
- Product Type
- Instrumentation Quick Connect Coupling
- Standard Material
- 316 Stainless Steel
- Body Sizes
- QC4, QC6 & QC8
- Configurations
- SESO, DESO & Full Flow
- Components
- Bodies & Stems
- End Connections
- Tube Fitting, NPT, ISO/BSP Tapered & Hose
- Maximum Working Pressure
- Up to 3000 psig / 207 bar
- Flow Coefficient
- Size- and configuration-dependent
- Seal Configuration
- Application-dependent
Instrumentation Quick Connect Couplings
Instrumentation quick connect couplings provide fast connection and disconnection of fluid lines without requiring tools during normal coupling operation.
The QC series is available in QC4, QC6 and QC8 body sizes with multiple shutoff configurations and end connections for instrumentation, testing and industrial fluid systems.
Key Features
- 316 stainless steel construction
- Working pressures up to 3000 psig / 207 bar, depending on configuration
- QC4, QC6 and QC8 body sizes
- Single-end shutoff, double-end shutoff and full-flow configurations
- Body and stem components
- Tube fitting and threaded end connections
- Compact push-in connection
- Multiple flow capacities depending on size and valve configuration
- Suitable for repeated make-and-break fluid connections
Shutoff Configurations
Single-End Shutoff — SESO
Single-end shutoff configurations use a valve on one side of the quick-connect assembly while the opposite side remains open when disconnected.
This arrangement can be selected where automatic shutoff is required on only one side of the fluid line.
Double-End Shutoff — DESO
Double-end shutoff configurations use valved components to shut off both sides of the connection when uncoupled.
This configuration helps limit fluid loss and air ingress during disconnection and is useful where both sides of the system need to be isolated.
Full Flow
Full-flow configurations are available where an internal shutoff valve is not required and higher flow capacity through the quick-connect connection is preferred.
Body Sizes & Flow Capacity
Flow capacity depends on body size and internal valve configuration.
Body Size | Representative Stem Cv |
|---|---|
QC4 | 0.2–0.3 |
QC6 | 0.5–0.8 |
QC8 | 1.3–2.0 |
The lower Cv values generally correspond to valved stem configurations, while open or non-valved configurations provide higher flow capacity.
End Connection Options
Available end connections include:
- Fractional tube fittings
- Metric tube fittings
- Male NPT
- Female NPT
- Male ISO/BSP tapered thread
- Female ISO/BSP tapered thread
- Hose connections
Exact connection availability depends on body size and configuration.
Representative Female NPT Stem Configurations
Thread Size | Body Size | Open Stem Cv | Valved Stem Cv |
|---|---|---|---|
1/8 in. | QC4 | 0.3 | 0.2 |
1/4 in. | QC4 | 0.3 | 0.2 |
1/4 in. | QC6 | 0.8 | 0.5 |
3/8 in. | QC6 | 0.8 | 0.5 |
1/2 in. | QC8 | 2.0 | 1.3 |
Representative Female ISO/BSP Tapered Stem Configurations
Thread Size | Body Size | Open Stem Cv | Valved Stem Cv |
|---|---|---|---|
1/4 in. | QC4 | 0.3 | 0.2 |
3/8 in. | QC6 | 0.8 | 0.5 |
1/2 in. | QC8 | 2.0 | 1.3 |
Pressure & Operating Considerations
Maximum working pressure is up to 3000 psig / 207 bar, depending on the selected body, stem, seal, end connection and operating conditions.
Coupled, uncoupled and coupling/uncoupling pressure limits may differ. The allowable operating pressure should therefore be confirmed for the exact quick-connect configuration and service condition.
Temperature capability also depends on seal material and fluid compatibility.
Connection & Compatibility
Quick-connect bodies and stems must be selected as compatible components of the same coupling system.
Body size, shutoff configuration, end connection and seal requirements should be confirmed when selecting new or replacement components.
Components from different manufacturers or quick-connect series should not be assumed to be interchangeable based only on nominal size or external appearance.
Typical Applications
- Instrumentation lines
- Test equipment and test benches
- Calibration systems
- Pressure and flow measurement systems
- Hydraulic and utility lines
- Laboratory fluid systems
- Industrial fluid and gas systems
Selection & Ordering Information
To specify the required Instrumentation Quick Connect Coupling, provide:
- Body size — QC4, QC6 or QC8
- Component — Body, Stem or complete coupling requirement
- Shutoff configuration — SESO, DESO or Full Flow
- End connection type
- Connection size
- Operating pressure and temperature
- Fluid or gas medium
- Seal material, when specified
- Required quantity
- Existing part number, drawing or mating component information, when available
For replacement requirements, existing part numbers, product photos or mating-component information can be submitted for configuration review.
