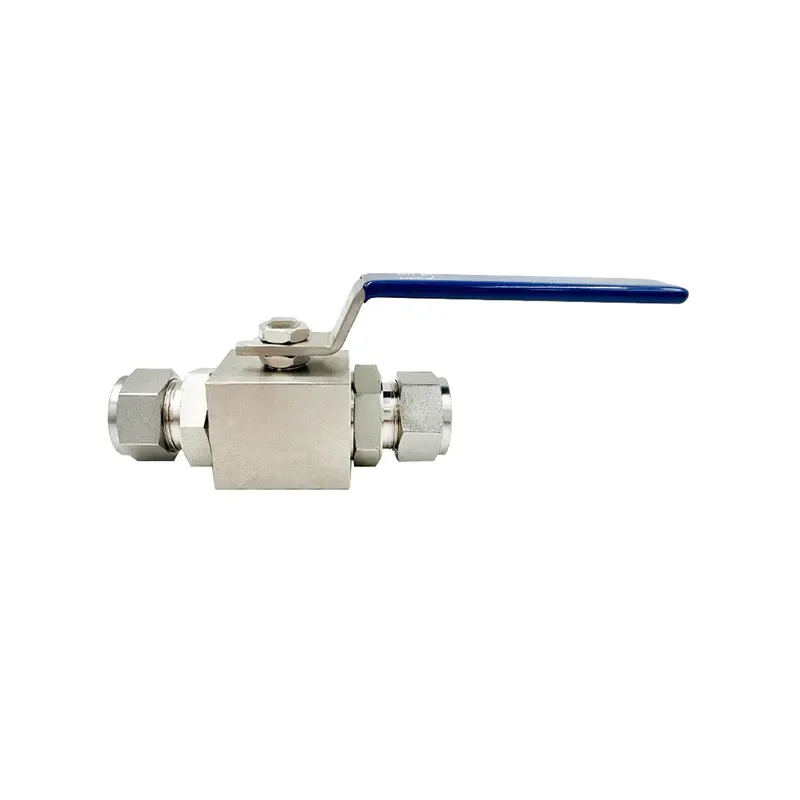

Stainless Steel High Pressure BSB Ball Valve
Stainless steel BSB ball valve designed for manual on/off isolation in high-pressure instrumentation, hydraulic, and fluid-control systems. Its compact straight bar-stock design supports multiple end-connection configurations, with maximum working pressure up to 10,000 psig (689 bar) depending on the selected configuration.
Specifications
- Product Type
- Instrument Ball Valve
- Series / Type
- BSB
- Body Material
- Stainless Steel
- Body Configuration
- Straight Bar Stock
- Flow Configuration
- 2-Way
- Maximum Working Pressure
- Up to 10,000 psig (689 bar)
- Working Temperature
- -40°F to 450°F (-40°C to 232°C)
- Operation
- Manual, Lever-Operated
Stainless Steel High Pressure BSB Ball Valve
The Stainless Steel High Pressure BSB Ball Valve is designed for manual on/off isolation in high-pressure instrumentation, hydraulic, and fluid-control systems.
Its compact straight bar-stock body and lever-operated ball mechanism provide quarter-turn control for opening or closing the flow path. Multiple end-connection configurations are available to accommodate different tubing and system requirements.
Key Features
- Stainless steel construction
- BSB straight bar-stock design
- Maximum working pressure up to 10,000 psig (689 bar)
- Working temperature from -40°F to 450°F (-40°C to 232°C)
- 2-way flow configuration
- Manual lever operation
- Quarter-turn on/off control
- Multiple end-connection configurations available
High-Pressure BSB Design
The BSB Series uses a compact straight bar-stock configuration for high-pressure systems requiring manual on/off isolation.
Maximum working pressure is up to 10,000 psig (689 bar). The applicable pressure rating should be confirmed for the selected valve size, end connection, and operating conditions.
Connection Options
BSB ball valves can be supplied with different end-connection configurations to suit the required tubing or system interface.
For double-ferrule metric tube connections, available configurations include tube sizes from 6 mm to 25 mm. Other connection configurations should be confirmed according to the required valve model and system requirements.
Operating Temperature
The working temperature range is -40°F to 450°F (-40°C to 232°C).
Valve selection should consider operating pressure and temperature together with the selected connection configuration, process fluid, and material compatibility.
Typical Applications
BSB ball valves are suitable for high-pressure systems requiring manual on/off isolation, including process instrumentation, test systems, sampling systems, hydraulic service, and equipment fluid lines.
Final valve selection should be based on the actual operating pressure, temperature, process fluid, connection requirements, and material compatibility.
Selecting the Right Configuration
When specifying a BSB ball valve, provide the required connection type and size together with operating pressure, temperature, process fluid, and quantity.
For applications requiring double-ferrule tube connections, specify the tube outside diameter and material so the appropriate valve configuration can be confirmed.
Request a Quote
Send us your required connection type and size, operating pressure, temperature, process fluid, tube specifications where applicable, and quantity. Our team will review the application and help confirm a suitable BSB ball valve configuration.
