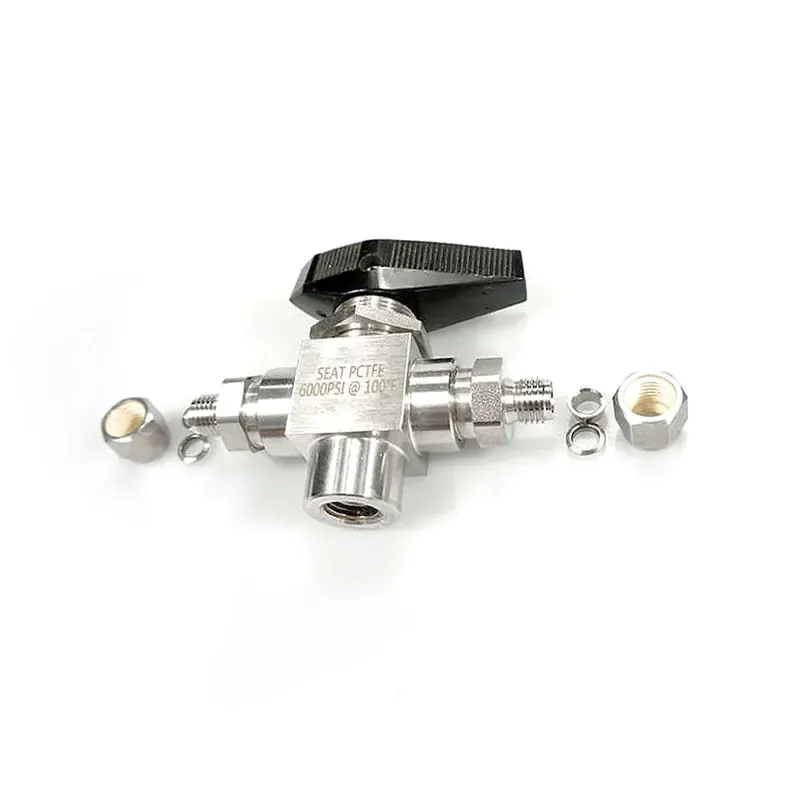

Stainless Steel Double Ferrule Three-Way Trunnion Ball Valve
Stainless steel three-way trunnion ball valve with double-ferrule tube connections, designed for manual flow-path switching in high-pressure instrumentation and fluid-control systems. Available in TB and TBH Series configurations, with maximum working pressure up to 6000 psig (414 bar) for TB and up to 10,000 psig (689 bar) for TBH.
Specifications
- Product Type
- Trunnion Ball Valve
- Series / Type
- TB / TBH Series
- Body Material
- Stainless Steel
- Connection
- Double-Ferrule Tube Connections
- Tube Size
- 1/4 in. to 1/2 in.; 6 mm to 12 mm
- Flow Configuration
- 3-Way
- Maximum Working Pressure
- TB: Up to 6000 psig (414 bar); TBH: Up to 10,000 psig (689 bar)
- Working Temperature
- 0°F to 450°F (-18°C to 232°C)
Stainless Steel Double Ferrule Three-Way Trunnion Ball Valve
The Stainless Steel Double Ferrule Three-Way Trunnion Ball Valve is designed for manual flow-path switching in high-pressure instrumentation and fluid-control systems.
Its trunnion-style ball design incorporates double-ferrule tube connections at all three ports, providing a compact three-way valve configuration for connecting and switching between tubing lines.
Key Features
- Stainless steel construction
- TB / TBH trunnion ball valve design
- Three-way flow configuration
- Double-ferrule tube connections
- Fractional tube sizes from 1/4 in. to 1/2 in.
- Metric tube sizes from 6 mm to 12 mm
- TB maximum working pressure up to 6000 psig (414 bar)
- TBH maximum working pressure up to 10,000 psig (689 bar)
- Working temperature from 0°F to 450°F (-18°C to 232°C)
- Manual quarter-turn operation
TB and TBH Trunnion Design
The TB and TBH Series use a trunnion-style ball configuration designed for high-pressure fluid-control applications.
The fixed-ball arrangement incorporates seat sealing on both sides of the ball. The three-way configuration provides three connected valve ports for manual flow-path switching according to the required system arrangement.
Double-Ferrule Tube Connections
This configuration uses double-ferrule tube connections at all three valve ports.
Fractional tube sizes are available from 1/4 in. to 1/2 in., while metric tube sizes are available from 6 mm to 12 mm.
The required tube outside diameter and tubing material should be specified when selecting the valve.
Pressure and Temperature
TB Series configurations have a maximum working pressure up to 6000 psig (414 bar), while TBH Series configurations have a maximum working pressure up to 10,000 psig (689 bar).
The working temperature range is 0°F to 450°F (-18°C to 232°C).
Applicable working pressure depends on the selected series, operating temperature, sealing materials, tube connection, and service conditions. Final valve selection should be based on the actual system requirements.
Three-Way Flow Configuration
The three-way configuration is designed for applications requiring manual switching between connected fluid lines.
The required flow-path arrangement should be specified when selecting the valve so that the appropriate three-way configuration can be confirmed for the application.
Typical Applications
TB and TBH trunnion ball valves are suitable for high-pressure systems requiring manual flow-path switching, including process instrumentation, test systems, hydraulic systems, and equipment fluid lines.
Application suitability should be confirmed according to the required pressure, temperature, process fluid, tubing specifications, flow-path requirements, and material compatibility.
Selecting the Right Configuration
When specifying a double-ferrule three-way trunnion ball valve, provide the required tube outside diameter, tubing material, operating pressure, temperature, process fluid, flow-path requirements, and quantity.
The required working pressure is particularly important when selecting between the TB and TBH Series.
Request a Quote
Send us your required tube size, tubing material, flow-path requirements, operating pressure, temperature, process fluid, and quantity. Our team will review the application and help confirm a suitable TB or TBH three-way trunnion ball valve configuration.
