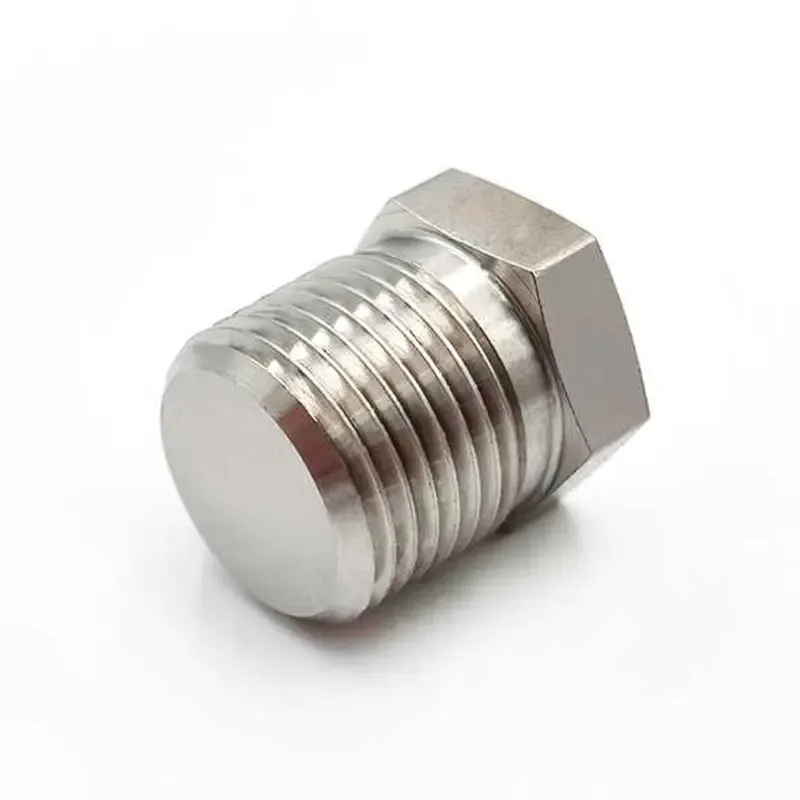

Hex Plug
316 stainless steel hex plug for closing unused female-threaded ports in instrumentation, process and industrial fluid systems. Features an external hex head for wrench installation and is available with NPT, ISO/BSP tapered, ISO/BSP parallel and metric male threads.
Specifications
- Series
- TPP Series
- Fitting Type
- Hex Plug
- Configuration
- Male Threaded Plug
- Drive Type
- External Hex
- Primary Thread
- NPT
- NPT Standard
- ASME B1.20.1
- Available Thread Types
- NPT, ISO/BSP Tapered, ISO/BSP Parallel and Metric
- NPT Size Range
- 1/16 to 1 1/2 in.
- Standard Material
- 316 Stainless Steel
- Material Specification
- ASTM A276 Bar Stock
- Body Construction
- Machined from Bar Stock
Overview
The TPP Series Hex Plug is designed to close an unused female-threaded port in instrumentation, process and industrial fluid systems.
Its male threaded connection installs directly into a corresponding female port, while the external hex head provides wrench engagement for installation and removal.
NPT is the primary thread configuration. Selected ISO/BSP tapered, ISO/BSP parallel and metric male-thread configurations are also available for different piping and equipment requirements.
Key Features
- Male-threaded plug for closing unused female ports
- External hex head for wrench installation and removal
- NPT threads based on ASME B1.20.1
- NPT sizes from 1/16 to 1 1/2 in.
- ISO/BSP tapered, ISO/BSP parallel and metric configurations available
- 316 stainless steel as the standard material
- Straight body machined from bar stock
- Suitable for instrumentation, process and industrial fluid systems
Engineering Specifications
Parameter | Specification |
|---|---|
Product Type | Hex Plug |
Series | TPP |
Body Style | External Hex Head |
Connection | Male Thread |
Primary Thread Type | NPT |
NPT Standard | ASME B1.20.1 |
Available Thread Types | NPT, ISO/BSP Tapered, ISO/BSP Parallel and Metric |
NPT Size Range | 1/16 to 1 1/2 in. |
Standard Material | 316 Stainless Steel |
Material Specification | ASTM A276 Bar Stock |
Working Pressure | Dependent on thread size and system conditions |
Available Thread Sizes
Male NPT
Available sizes:
- 1/16 in.
- 1/8 in.
- 1/4 in.
- 3/8 in.
- 1/2 in.
- 3/4 in.
- 1 in.
- 1 1/4 in.
- 1 1/2 in.
Male ISO/BSP Tapered
Available sizes:
- 1/16
- 1/8
- 1/4
- 3/8
- 1/2
- 3/4
- 1
- 1 1/4
- 1 1/2
- 2
Male ISO/BSP Parallel
Available sizes:
- 1/8
- 1/4
- 3/8
- 1/2
- 3/4
- 1
Male Metric
Available sizes:
- M14 × 1.5
- M16 × 1.5
- M18 × 1.5
- M20 × 1.5
- M22 × 1.5
- M24 × 1.5
- M27 × 2
Thread & Sealing Considerations
NPT is a tapered pipe thread. Sealing is developed through thread engagement together with a thread-sealing method appropriate for the fluid, temperature and operating conditions.
ISO/BSP tapered threads also use a tapered-thread connection but should not be assumed interchangeable with NPT. Thread form, pitch and dimensional standard must match the female port.
ISO/BSP parallel and metric threads are straight threads and require the sealing arrangement specified for the mating port or connection design. They should not be treated as self-sealing tapered pipe threads.
Thread standard, size, pitch and sealing method should therefore be verified before ordering or installation.
External Hex vs. Hollow Hex Plug
The TPP Series Hex Plug uses an external hex head for wrench installation.
A hollow hex plug uses an internal hex drive and is a separate fitting configuration. The two designs should be selected according to the available installation space, port arrangement and system requirements.
Material
Standard Material: 316 Stainless Steel
TPP Series Hex Plugs are machined from 316 stainless steel bar stock to ASTM A276.
316 stainless steel provides corrosion resistance and mechanical performance for a wide range of instrumentation, process and industrial fluid applications.
Typical Applications
Hex Plugs are commonly used for:
- Valve and manifold ports
- Pressure instrument connections
- Process piping
- Pumps and process equipment
- Hydraulic and utility systems
- Test equipment
- Temporary or permanent closure of unused threaded connections
Selection & Ordering Information
To specify the required Hex Plug, provide:
- Thread type
- Thread size
- Material
- Required working pressure
- Operating temperature
- Fluid or process medium
- Quantity
For ISO/BSP parallel or metric configurations, the required sealing arrangement should also be identified.
Existing part numbers, drawings, BOMs or product references can be provided for product matching and quotation review.
