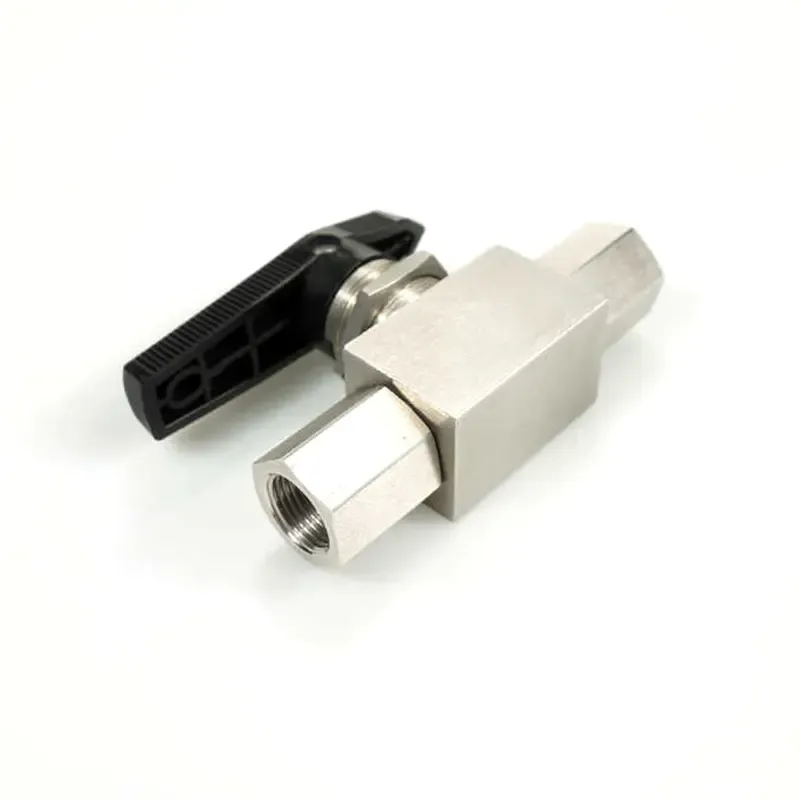

Stainless Steel Female NPT High Performance Ball Valve
Stainless steel HPB Series ball valve with Female NPT end connections, designed for manual on/off isolation in high-pressure instrumentation and fluid-control systems. The straight-pattern configuration is available in 1/8 in. to 3/4 in. Female NPT sizes, with maximum working pressure up to 6000 psig (414 bar).
Specifications
- Product Type
- High Performance Ball Valve
- Series / Type
- HPB
- Body Material
- Stainless Steel
- Connection
- Female NPT × Female NPT
- Connection Size
- 1/8 in. to 3/4 in.
- Flow Configuration
- 2-Way, Straight Pattern
- Maximum Working Pressure
- Up to 6000 psig (414 bar)
- Working Temperature
- -65°F to 450°F (-54°C to 232°C)
Stainless Steel Female NPT High Performance Ball Valve
The Stainless Steel Female NPT High Performance Ball Valve is an HPB Series valve designed for manual on/off isolation in high-pressure instrumentation and fluid-control systems.
Its straight-pattern configuration uses Female NPT connections at both ends and provides quarter-turn shutoff for applications requiring compact, high-pressure fluid isolation.
Key Features
- Stainless steel construction
- HPB high performance ball valve design
- Female NPT inlet and outlet connections
- 2-way straight-pattern configuration
- Connection sizes from 1/8 in. to 3/4 in.
- Maximum working pressure up to 6000 psig (414 bar)
- Working temperature from -65°F to 450°F (-54°C to 232°C)
- Manual quarter-turn operation
HPB High Performance Design
The HPB Series is designed for high-pressure fluid systems requiring manual on/off isolation.
The straight-pattern configuration provides a direct 2-way flow path, while the handle provides quarter-turn operation and indicates valve position.
Female NPT Connections
This configuration is available with Female NPT connections at both ends in sizes from 1/8 in. to 3/4 in.
Available orifice sizes and flow coefficients vary with the selected connection size. The required connection size and operating conditions should therefore be specified when selecting the valve.
Pressure and Temperature
Maximum working pressure is up to 6000 psig (414 bar), with a working temperature range from -65°F to 450°F (-54°C to 232°C).
Applicable working pressure depends on operating temperature and the selected valve configuration and packing material. Final valve selection should be based on the actual service conditions.
Typical Applications
HPB ball valves are suitable for high-pressure systems requiring manual on/off isolation, including process instrumentation, test systems, sampling systems, and equipment fluid lines.
Application suitability should be confirmed according to operating pressure, temperature, process fluid, connection size, and material compatibility.
Selecting the Right Configuration
When specifying a Female NPT HPB ball valve, provide the required connection size together with operating pressure, temperature, process fluid, and quantity.
For applications requiring a different connection type or flow configuration, provide the system interface and flow-path requirements so the appropriate HPB configuration can be confirmed.
Request a Quote
Send us your required Female NPT size, operating pressure, temperature, process fluid, and quantity. Our team will review the application and help confirm a suitable HPB ball valve configuration.
