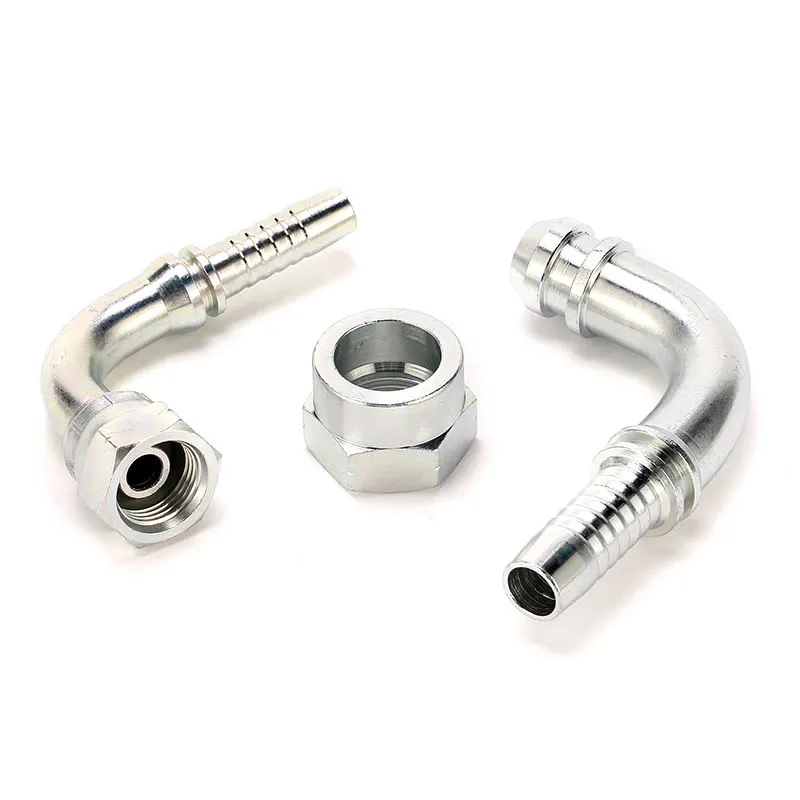

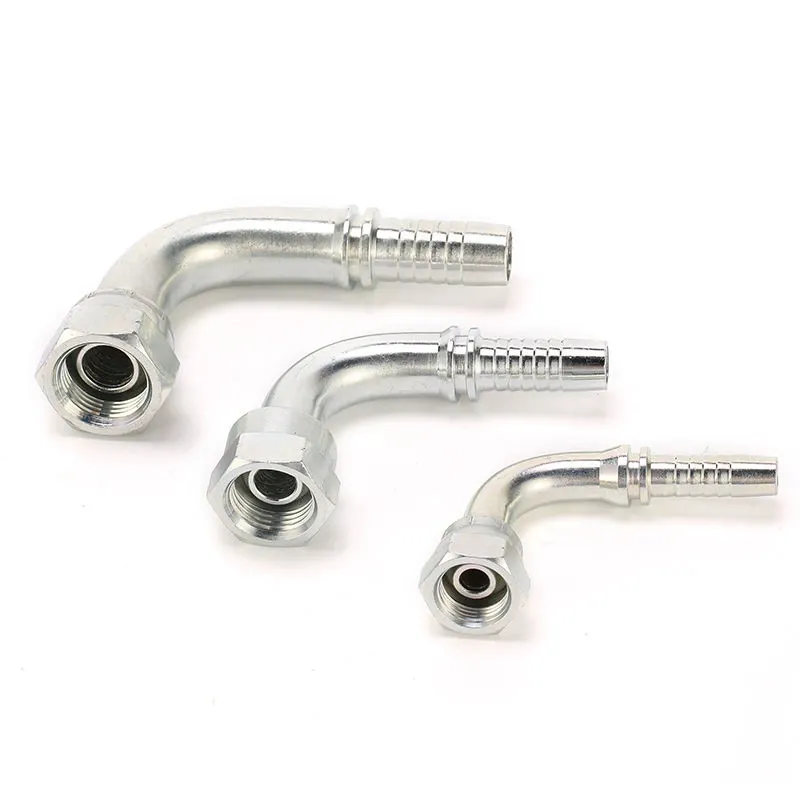

90° BSP Female 60° Cone Swivel Hydraulic Hose Fitting
90° BSP female 60° cone swivel hydraulic hose fitting with a hose stem for hydraulic hose assemblies. Available in stainless steel and carbon steel for applications requiring angled hose routing and compatible BSP connections.
Specifications
- Product Type
- Hydraulic Hose Fitting
- Series / Reference
- 22691
- Materials
- Stainless Steel, Carbon Steel
- Connection Type
- BSP Female 60° Cone Swivel
- Configuration
- 90° Elbow
- Hose End
- Hose Stem
- Reference Configuration
- 3/8 in. Hose × 3/8 in. BSPP Female
90° BSP Female Connection for Hydraulic Hose Assemblies
The 90° BSP Female 60° Cone Swivel Hydraulic Hose Fitting provides an angled hose connection between a hydraulic hose assembly and a compatible BSP connection.
Its 90° elbow configuration combines a BSP female 60° cone swivel connection with a hose stem, making it suitable for installations where hose routing or available space does not favor a straight connection.
Key Features
- BSP female 60° cone swivel connection
- 90° elbow hydraulic hose fitting configuration
- Hose stem for hydraulic hose assemblies
- Available in stainless steel and carbon steel
- Angled configuration for directional hose routing
- Suitable for compatible BSP hydraulic connections
Material Options
Stainless steel and carbon steel versions are available for different hydraulic system requirements. Stainless steel is commonly selected where corrosion resistance is important, while carbon steel is widely used for general hydraulic applications. Material selection should consider the operating environment, fluid compatibility and system requirements.
BSP Female 60° Cone Connection
The female swivel end is designed to mate with a compatible BSP connection using a 60° cone sealing interface.
The swivel connection allows the fitting to be connected without requiring the complete hose assembly to rotate during installation. Correct thread size and mating connection geometry should be confirmed when selecting a fitting for a new or replacement hose assembly.
90° Elbow for Hose Routing
The 90° elbow changes the direction of the hose connection and can help route hydraulic hoses where a straight fitting would require additional hose bending or where installation space is restricted.
The correct fitting configuration should be selected according to hose routing, available installation space and the orientation of the mating connection.
Designed for Hydraulic Hose Assemblies
This fitting combines a hose stem on one end with a BSP female swivel connection on the other, allowing a flexible hydraulic hose assembly to connect to compatible hydraulic equipment or system components.
Unlike a conventional BSP adapter used between rigid connection points, the hose stem is intended for integration into the hose assembly.
Typical Applications
90° BSP female hydraulic hose fittings are commonly used in:
- Hydraulic machinery and equipment
- Mobile hydraulic systems
- Hydraulic power units
- Industrial fluid power systems
- Machinery and equipment connections
- Hydraulic hose assemblies requiring angled BSP connections
Selecting the Correct Fitting
Correct selection requires matching both sides of the hose assembly. Confirm the BSP connection type and size, hose size and specification, material, and required fitting orientation.
For replacement or custom requirements, provide the existing fitting reference, drawing, sample or connection details so the required configuration can be checked before ordering.
Request a Quote
Need a 90° BSP female 60° cone hydraulic hose fitting for a new or replacement hose assembly?
Send us your required BSP connection size, hose specification, material, quantity, drawing or existing fitting reference. Our team can help confirm the appropriate configuration for your application.
