Pipe Clamps
Tube & Pipe Clamps
Industrial tube and pipe clamps for supporting and securing tubing, pipes and hoses in hydraulic, instrumentation and industrial fluid systems. Available in Standard, Heavy and Twin Series configurations with multiple clamp-body, metal-component and mounting options.
Specifications
- Product Type
- Tube & Pipe Clamps
- Standard Basis
- DIN 3015
- Series
- Standard, Heavy & Twin
- Clamp Body Materials
- Polypropylene (PP), Polyamide (PA), Aluminum
- Metal Components
- Carbon Steel or Stainless Steel
- Installation
- Weld Plate, Mounting Rail & Stacking Options
- Tube / Pipe Size
- Series- and configuration-dependent
- Application
- Tubing, Pipe & Hose Support
Tube & Pipe Clamps
Tube and pipe clamps provide mechanical support, positioning and secure routing for tubing, pipes and hoses in hydraulic, instrumentation and industrial fluid systems.
Available in multiple series, materials and mounting configurations, the clamp system can be selected according to line diameter, mechanical load, installation arrangement and operating environment.
Key Features
- Standard, Heavy and Twin Series configurations
- DIN 3015 standard basis
- Polypropylene (PP), polyamide (PA) and aluminum clamp-body options
- Carbon steel and stainless steel metal-component options
- Weld-plate and mounting-rail installation options
- Stacking arrangements for multi-level line routing
- Suitable for metric and imperial tube and pipe requirements
- Configurable for individual items, BOMs and project supply
Series & Configuration
Standard Series
Standard Series clamps provide a compact support solution for general tubing, piping and hose installations.
They are commonly selected for instrumentation lines, hydraulic systems, machinery and general industrial fluid systems where secure line routing and support are required.
Heavy Series
Heavy Series clamps are designed for applications requiring a more robust support arrangement.
They are suited to larger lines and installations with higher mechanical loads, including hydraulic equipment, machinery and industrial piping systems.
Twin Series
Twin Series clamps support two parallel lines within one clamp arrangement.
They provide an efficient solution where paired tubes or pipes need to be routed together while maintaining an organized installation.
Clamp Body Materials
Clamp-body material can be selected according to the installation environment and application requirements.
Material | Typical Selection Consideration |
|---|---|
Polypropylene (PP) | General industrial and hydraulic installations |
Polyamide (PA) | Applications requiring a higher-performance engineering plastic |

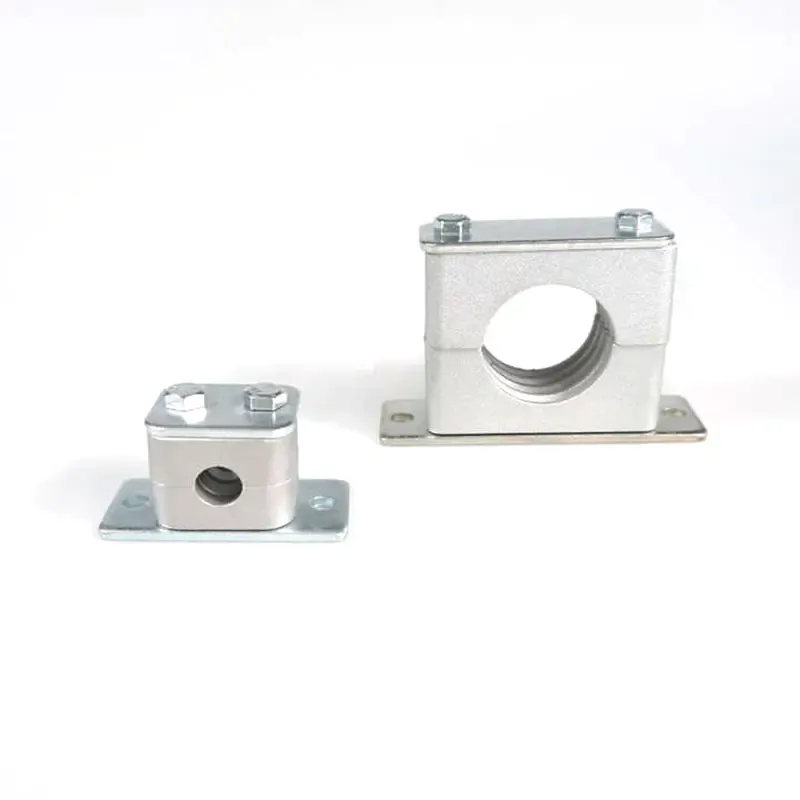

Aluminum | Applications requiring a metallic clamp body |
Material availability may vary by series, size and configuration.
Metal Components
Clamp assemblies can be configured with different metal-component materials depending on environmental and project requirements.
Available configurations include:
- Carbon steel components
- Stainless steel components
- Cover plates
- Bolts and fastening hardware
- Weld plates
- Rail-mounting components
- Stacking hardware
The required component combination should be specified when requesting a quotation.
Mounting Options
Different mounting arrangements are available to suit equipment layout and line-routing requirements.
Weld Plate Mounting
The clamp assembly is mounted to a weld plate secured to the supporting structure. This arrangement is commonly used for permanent tubing and piping installations.
Mounting Rail
Rail mounting allows clamp positions to be arranged along a common support rail and is useful where multiple lines need to be routed in an organized layout.
Stacked Installation
Selected clamp configurations can be installed in multiple levels to support several lines while reducing the required mounting footprint.
Selection Considerations
Correct clamp selection depends on more than tube or pipe diameter.
When selecting a clamp configuration, consider:
- Tube, pipe or hose outside diameter
- Standard, Heavy or Twin Series
- Clamp-body material
- Metal-component material
- Mounting method
- Number and arrangement of lines
- Mechanical loading and vibration
- Operating environment
- Project or equipment specifications
Series, materials and mounting components should be selected as a complete system rather than specifying the clamp body alone.
Typical Applications
- Instrumentation tubing
- Machinery and equipment
- Process and industrial piping
- Test equipment and test benches
- Utility and service lines
- Multiple-line routing
- Industrial fluid systems
Selection & Ordering Information
To specify the required Tube & Pipe Clamp, provide:
- Tube / pipe / hose outside diameter
- Required series — Standard, Heavy or Twin
- Clamp-body material — PP, PA or Aluminum
- Metal-component material — Carbon Steel or Stainless Steel
- Mounting method — Weld Plate, Mounting Rail or other required arrangement
- Quantity
- Operating environment or application, when relevant
- Drawing, BOM or existing part reference, when available
For multi-item requirements, equipment projects or replacement supply, drawings, BOMs and existing part references can be submitted for configuration review.
