Process & Chemical Systems

Explore fluid connection and control requirements for process and chemical systems, including material, media, isolation, sampling and flexible connections.

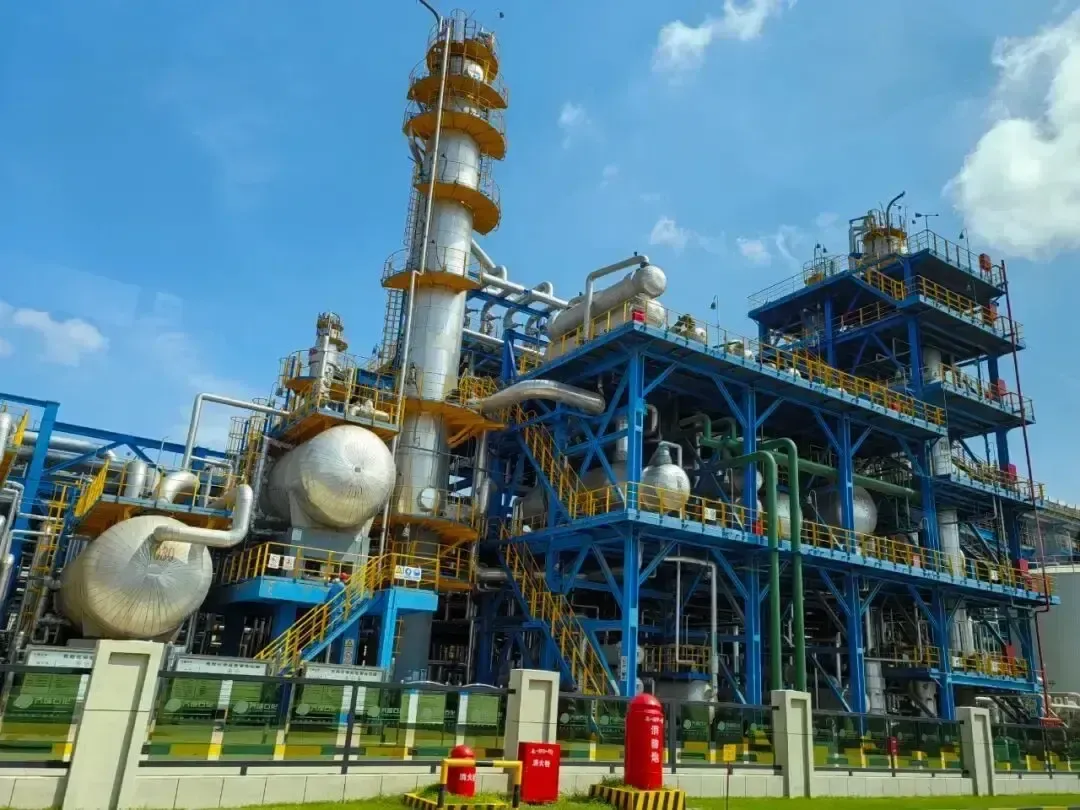

process-chemical-systems

Start With the Process Medium

In process and chemical systems, component selection begins with more than connection size.
The fluid or gas being handled can affect material selection, sealing materials, operating limits and the suitability of individual components throughout the fluid path.
A typical system may involve connections between process equipment, tubing, valves, sampling points, instruments and flexible transfer lines.
For buyers and engineers, the starting questions are:
What is the medium, where does it need to go, what functions are required along the fluid path, and under what operating conditions?

CONNECT — Fittings and Process Interfaces

Connections may be required between tubing, threaded equipment ports, valves, instruments and other process components.
Depending on the system, these interfaces can involve:
  • Instrumentation tube fittings
  • Pipe fittings
  • Threaded adapters
  • Tube-to-thread transitions
  • Other connection configurations required by the equipment
A complete connection specification should identify both sides of the interface.
For example, “1/2-inch stainless steel adapter” is not enough to determine whether the requirement involves tube OD, NPT, BSPP, BSPT or another connection standard.
Where threaded connections are involved, confirm:
thread standard + size + male/female configuration + sealing interface
Where tubing is involved, confirm the actual tube outside diameter rather than relying on nominal pipe terminology.

MATERIAL — Match the Component to the Service

Material selection is particularly important when the process medium can create corrosion, compatibility or contamination concerns.
The correct material cannot be determined from the industry name alone.
A chemical-processing application, for example, does not automatically mean that one stainless-steel grade is suitable for every service.
Selection may need to consider:
  • Process medium
  • Concentration or composition where relevant
  • Operating temperature
  • Operating pressure
  • Exposure conditions
  • Component material
  • Seal or seat material
  • Applicable project specifications
  • Required material documentation
Material compatibility should be evaluated against the actual service conditions and the component manufacturer's technical data.
Where a project specifies an exact material grade, it should be stated explicitly in the RFQ rather than replaced with a general description such as “stainless steel.”

ISOLATE — Valves at Process and Instrument Connections

Isolation valves allow a section of the fluid path, instrument connection or sampling point to be separated when required by the system design.
The appropriate valve depends first on its intended function.
A requirement may involve:
  • On/off isolation
  • Controlled flow adjustment
  • Check or directional function
  • Bleed or vent function
  • Instrument isolation
  • Sampling isolation
Different valve designs perform different functions.
A valve should therefore not be selected only by size and material. Pressure, temperature, medium, connection type and internal sealing materials can all be relevant to the final specification.

CONTROL — Managing Flow Through the Required Path

Some process connections require more than simple isolation.
Needle valves, manifolds and other valve arrangements may be used where the system requires controlled flow, multiple flow paths, equalization, venting or instrument access.
The correct arrangement depends on the process function.
Before specifying a control component, identify:
  • What enters the component
  • Where the medium needs to go
  • Whether isolation is required
  • Whether flow adjustment is required
  • Whether venting or draining is required
  • Whether an instrument or test point is involved
This functional approach is more reliable than selecting a component from appearance or valve count alone.

INSTRUMENT — Process Measurement and Sampling Interfaces

Process and chemical systems frequently include measurement, monitoring and sampling points.
These interfaces may connect process equipment to:
  • Pressure instruments
  • Transmitters
  • Analyzers
  • Sample lines
  • Test equipment
  • Other monitoring devices
The connection path may include tubing, tube fittings, isolation valves, manifolds and adapters.
Sampling requirements deserve particular attention because the sample needs to travel from the process to the sampling or analysis point through a defined fluid path.
The connection components should therefore be specified with the medium, pressure, temperature and required sampling arrangement in mind.
Detailed sampling-system design can be addressed separately where the application requires it.

TRANSFER — Flexible Connections Where Movement Is Required

Not every process connection is best served by rigid tubing.
Flexible hose assemblies may be considered where the system requires movement, routing flexibility, equipment connection or accommodation of relative motion.
Depending on the application, this may involve PTFE or metallic flexible connections.
A hose assembly should not be specified by hose size alone.
Important inputs can include:
  • Hose type
  • Inside diameter or nominal size
  • Overall length
  • End connections
  • Pressure
  • Temperature
  • Process medium
  • Required flexibility or movement
  • Installation environment
  • End orientation where relevant
The hose material and end connections need to be considered as parts of the same assembly.

Common Specification Gaps

Process and chemical RFQs often become difficult to review when the product description is separated from the actual service.

Medium not specified

Material and sealing requirements cannot be evaluated properly when the process medium is unknown.

“Stainless steel” without a grade

If a project requires a particular grade, state it explicitly.

Connection described only by size

A nominal size does not establish whether the connection is tube, NPT, BSPP, BSPT or another interface.

Pressure without temperature

Both should be provided where they affect component selection.

Hose requested without end connections

A hose assembly is not completely defined until its hose construction, length and end connections are established.

Material certificate requested after production

If material documentation or traceability is a project requirement, define it before the order rather than assuming every product automatically includes the same documentation package.

What to Include in a Process or Chemical RFQ

Where available, provide:
  1. Application or equipment Process line, skid, instrument connection, sampling system or other equipment.
  1. Process medium Include composition or concentration when relevant to material selection.
  1. Required component Fitting, valve, manifold, tubing, adapter, hose assembly or other connection component.
  1. Connection details Tube OD, thread standard, size, male/female configuration and sealing interface where applicable.
  1. Material
  1. Operating pressure
  1. Operating temperature
  1. Required function Connection, isolation, flow adjustment, sampling, measurement or transfer.
  1. Quantity
  1. Applicable standards and documentation requirements
  1. Drawing, datasheet or existing part number where available
Unknown parameters should be identified as to be confirmed rather than assumed.

Relevant Component Families

Process and chemical systems may involve several StarkValve product families:
  • Instrumentation Tube Fittings
  • Pipe Fittings
  • Instrumentation Valves & Manifolds
  • Instrumentation Tubing
  • Hose & Flexible Connections
  • Related adapters and transition connections
The appropriate combination depends on the medium, connection architecture, operating conditions and required system functions.

Define the Service Before the Component

A product name alone rarely provides enough information to evaluate a process or chemical requirement.
Start with:
medium → function → connection → material → pressure → temperature → documentation
Then narrow the component selection.
For project inquiries, P&IDs, drawings, datasheets, equipment information or marked-up component lists can provide useful context for reviewing the required fluid path.
